Narishige PC-10 Dual Stage Glass Micropipette Puller Maximize

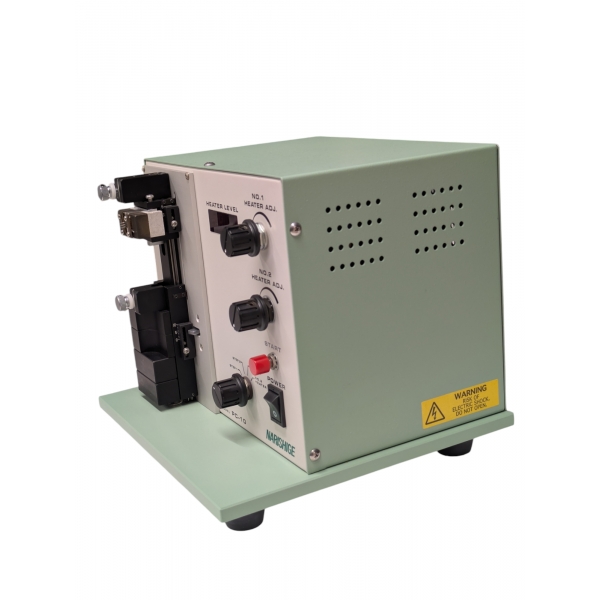

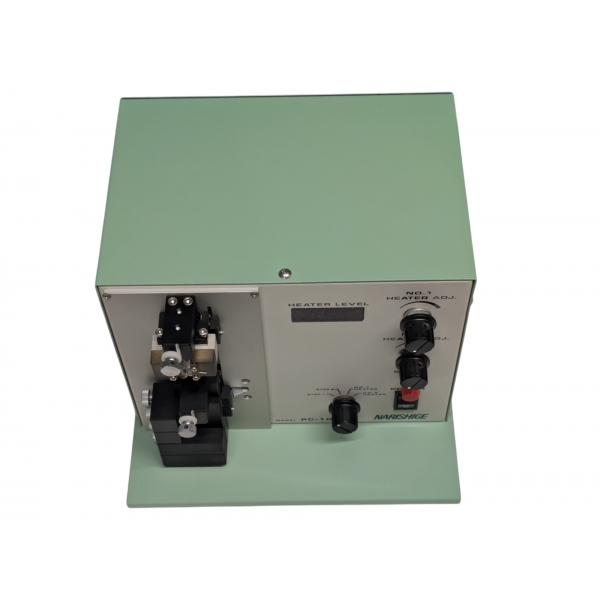

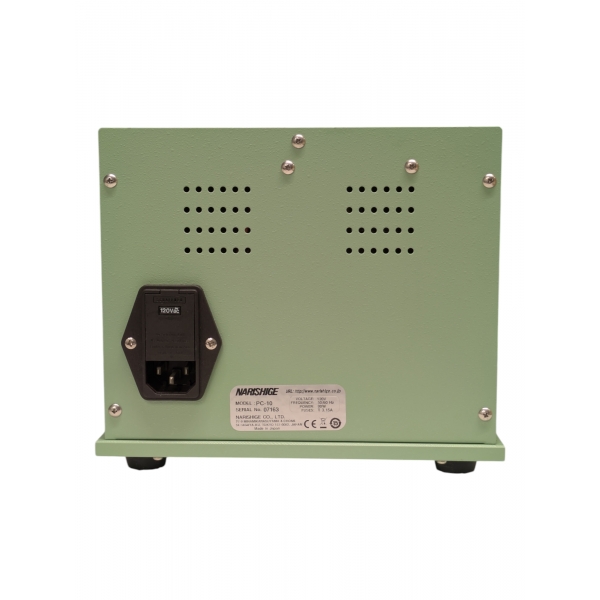

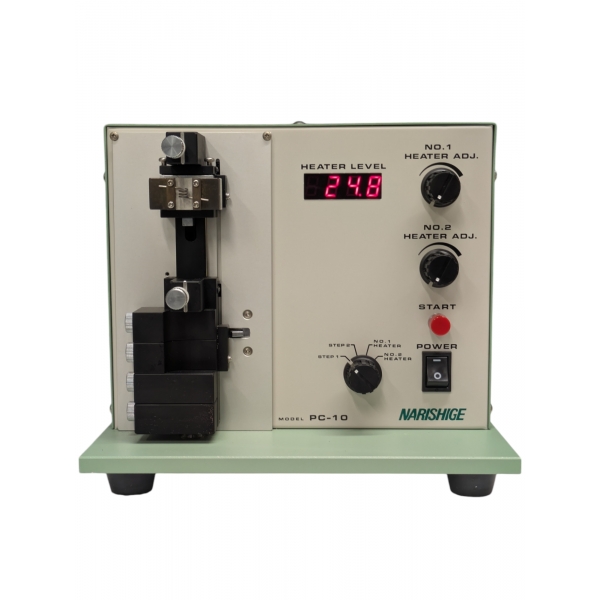

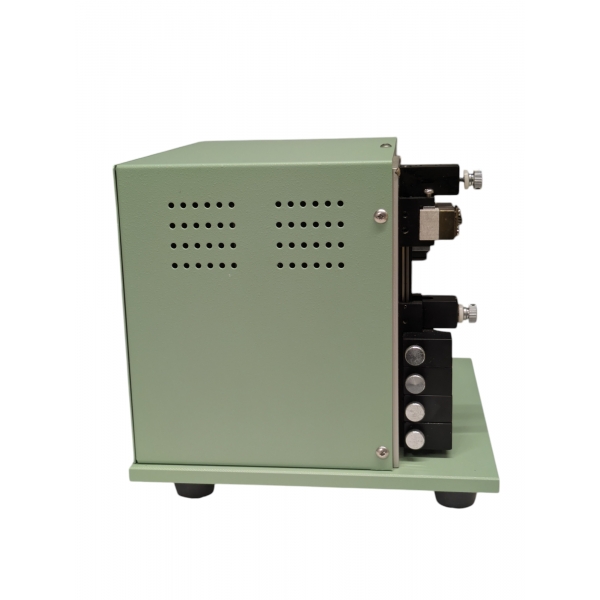

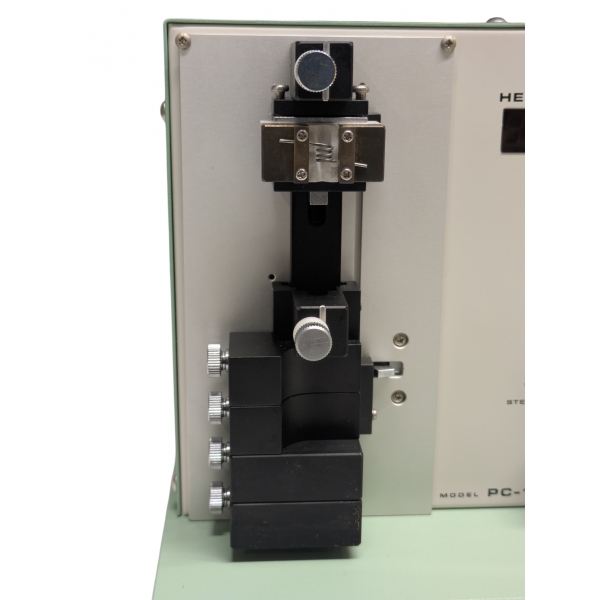

Narishige PC-10 Dual Stage Glass Micropipette Puller

Narishige PC-10 Dual Stage Glass Micropipette Puller is a used, fully operational unit designed for precise micropipette production. It features adjustable heater levels, a stable power supply, and an acrylic shroud to protect micropipettes from drafts. The pull force is adjustable with light and heavy weights.

More details

1 Item in stock

Warning: Last items in stock!

$3,900.00

Narishige PC-10 Dual Stage Glass Micropipette Puller (Used, Tested, Fully Operational)

You are purchasing a used Narishige PC-10 Dual Stage Glass Micropipette Puller. This unit has been thoroughly tested and is in excellent working condition, guaranteed to be fully operational and ready for use.

Condition: Used, fully operational, and in good working order.
Guarantee: Fully functional and ready for use.


Description:

The Narishige PC-10 Dual Stage Glass Micropipette Puller is a high-precision system designed for the reliable and consistent production of micropipettes with tip sizes ranging from one micron to tenths of a micron. It is particularly suited for the fabrication of microinjection needles and pipettes used in patch clamp experiments.

This micropipette puller features a stabilized built-in power source that ensures the uniform delivery of current to the heating coil, providing consistent and even heating each time. The heater levels for both single and double-pull operations can be precisely adjusted and are displayed through a highly visible digital LED readout, offering users full control over the process.

To protect the integrity of the micropipettes during the pulling process, the PC-10 includes an acrylic shroud that shields the micropipettes from external air currents, ensuring the micropipette shape and size remain unaffected by drafts. The pull force can be further adjusted using two pairs of weights (light and heavy), allowing for the fine-tuning of the pipette pulling force.

This system also includes a spare heater coil and a sample of 1.0mm I.D. glass microcapillary tube with internal glass fiber (GD-1), providing the necessary materials for immediate use and setup.


Key Features:

  • Dual-Stage System: Offers independent control for both heating and pulling stages, ensuring precise micropipette production.
  • Stable Power Supply: The built-in power source is specially stabilized to deliver consistent, even current to the heating coil for reliable results.
  • Adjustable Heater Levels: Both single and double pull operations allow for fine-tuned heating, with levels displayed on a digital LED readout.
  • Acrylic Shroud: Shields micropipettes from air currents during the pulling process to maintain consistent shape and size.
  • Adjustable Pulling Force: Includes two pairs of weights (light and heavy) to adjust the pulling force and achieve precise micropipette tips.
  • Additional Accessories: Includes a spare heater coil (PC-10H) and a sample of 1.0mm I.D. glass microcapillary tube with internal glass fiber (GD-1) for immediate use.

Specifications:

  • Power Supply: AC100V (+-5%), AC120V (+-5%), AC220V (+-5%), AC240V (+-5%)
  • Power Consumption: Approx. 80W
  • Heater Level: 100 = Heater Voltage 2.5V
  • Weight: 6.0 kg
  • Dimensions (W x H x D):
    • Metric: 205 x 185 x 190 mm
    • Imperial: 8.07 in x 7.28 in x 7.48 in

Applications:

  • Microinjection: Ideal for producing high-precision microinjection needles used in various biological applications such as gene editing and cell manipulation.
  • Patch Clamp Experiments: Perfect for crafting micropipettes used in electrophysiological research, ensuring precise recordings and measurements.
  • Micropipette Fabrication: Suitable for creating sharp, consistent micropipettes with highly accurate tip sizes, ideal for advanced laboratory experiments in fields like neurobiology, biophysics, and pharmacology.

Included:

  • Narishige PC-10 Dual Stage Glass Micropipette Puller

Power Supply Cable

  • Condition: Used
