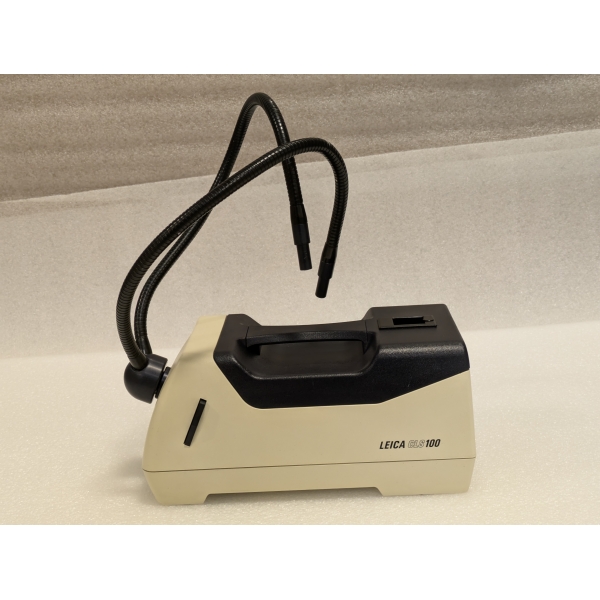

LEICA CLS 100 OPTIC FIBER LIGHT SOURCE/ILLUMINATOR

LEICA CLS 100 OPTIC FIBER LIGHT SOURCE/ILLUMINATOR
The Leica CLS cold light sources The Leica CLS cold light sources provide the strongest light intensity within the smallest space and flicker-free white light with a minimum heat influence on the specimens. The LEICA CLS 100 is a fiber optic light source or illuminator designed for use with a variety of Leica microscopes and imaging systems. It provides high-quality, adjustable illumination for both transmitted and reflected light applications, particularly in fields like biology, medical research, and materials science.

DESCRIPTIONS

• This models for 100-W halogen reflector lamps

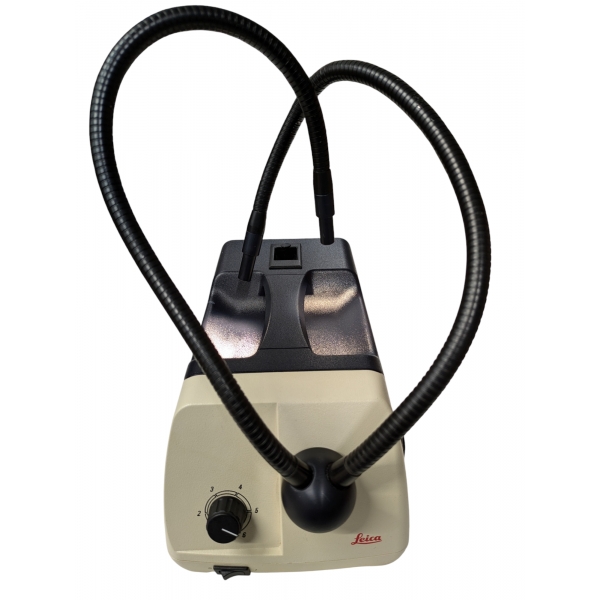

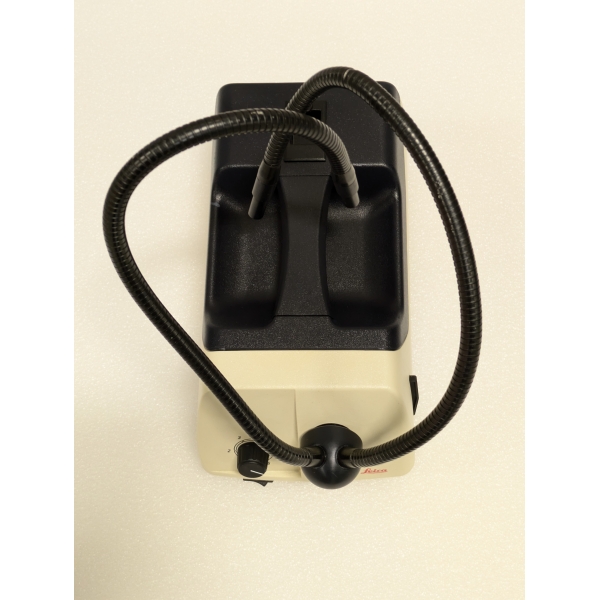

• CLS 100 comes with a universal voltage adapter and twin black adjustable light connector(fiber optic light guide)
• Maximum light intensity at fiber-optics output ∅6 mm depending upon model 5 Mlx, 8 Mlx, 17 Mlx or 19 Mlx
• Maximum bulb service life
• Unlimited combination possibilities of light sources and fiber-optic light guides

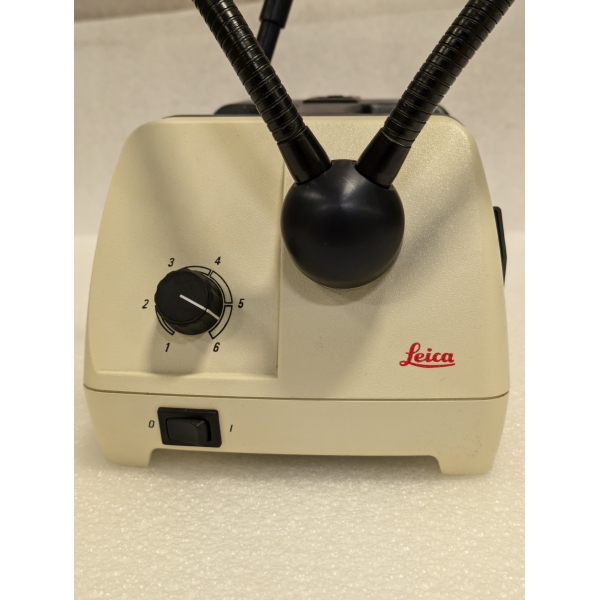

• Brightness control (potentiometer) with/without change of color temperature

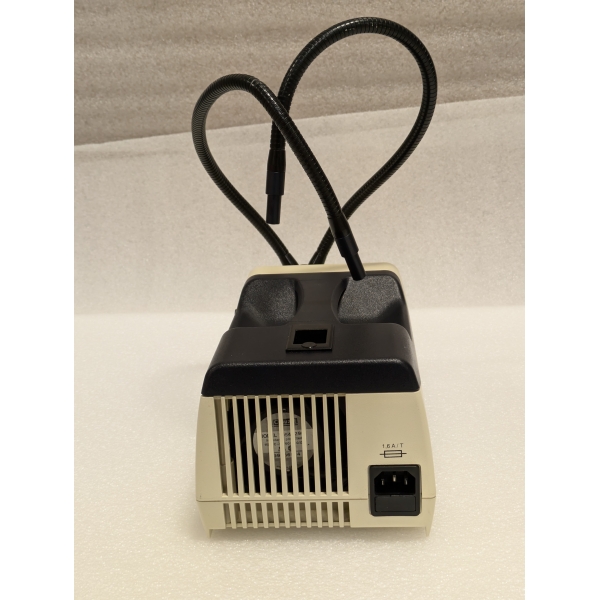

• Thermal overload protection, axial fan
• Meets all safety-relevant standards
• ESD design

Fiber Optic Lighting:
The CLS 100 uses fiber optic cables to deliver light to the specimen or area of interest. Fiber optic lighting allows precise positioning of the light source and minimizes heat transmission to the sample, which is crucial in sensitive biological and chemical applications.

Adjustable Intensity:
The intensity of the light can be finely tuned to provide the appropriate level of illumination for different observation or imaging conditions. This adjustability helps in optimizing contrast and resolution in microscopy.

Compact Design:
The unit is designed to be compact and efficient, allowing easy integration into laboratory setups without occupying significant space. This is particularly useful in environments with limited workspace.

Wide Compatibility:
The CLS 100 is compatible with various Leica microscopes, ensuring users can achieve the best performance from their equipment. The light source is versatile and can be used for a variety of lighting conditions, including transmitted, incident, and fluorescence illumination.

Stable and Reliable Performance:
The light source is designed for stable performance, providing consistent light intensity without significant fluctuations. This helps reduce variation in imaging results and ensures high-quality results over time.

Light Guide and Fiber Optic Cables:
The CLS 100 is typically used in conjunction with fiber optic light guides, which direct light to the specimen. These light guides are flexible and can be adjusted to illuminate from different angles and directions, further enhancing the flexibility of the system.

SPECIFICATIONS
Type: Fiber optic light source / Illuminator
Light Source: High-performance halogen
Wavelength Range: 320–700 nm (visible light)
Light Output: Adjustable intensity with smooth dimming capability
Light Guide Compatibility: Compatible with a range of fiber optic light guides
Fiber Optic Cable Length:  various lengths (e.g., 1.5 m, 3 m, 5 m)
Illumination Type: Transmitted and reflected light
Cooling System: Air-cooled design to minimize heat transmission to samples

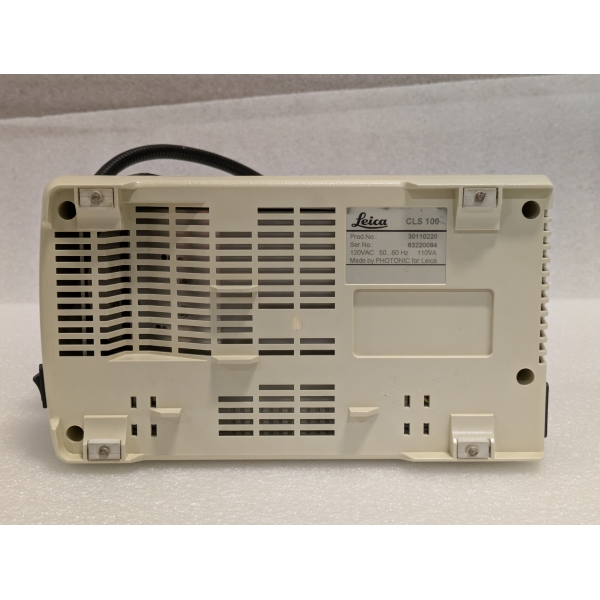

Power Supply: 100–240V AC, 50/60 Hz (universal power supply for international use)
Power Consumption: 75W for halogen models, lower for LED models
Illumination Intensity: Continuous dimming from 0% to 100% for precise control over light output
Brightness: Adjustable to meet specific microscopy needs
Color Temperature: 3200K (warm white)
Mounting Options: Can be used as a free-standing unit or mounted on a microscope stand, depending on the setup
User Interface: Manual control knobs for adjusting light intensity, some models may have a digital display for monitoring settings
Light Guides: Flexible, adjustable fiber optic light guides (gooseneck or straight types)
Fiber Optic Cable Type: 3.0 mm diameter
Connection Type: Standard light guide connector compatible with Leica microscopes
Noise Level: Low noise operation
Fluorescence Application: Compatible with fluorescence illumination systems
Compatibility: Works with most Leica upright and inverted microscopes, as well as other Leica imaging systems
Optional Accessories: Various fiber optic light guides, adapters, and filters
Operating Temperature: 0°C to 40°C
Humidity: 0% to 80% relative humidity, non-condensing

APPLICATION ON
Microscopy: Used for brightfield, darkfield, and fluorescence microscopy, where precise control over illumination is required.
Fluorescence Imaging: The CLS 100 is often used for fluorescence microscopy, where the quality of the light source directly impacts the sensitivity and clarity of fluorescence signals.
High-Resolution Imaging: The system is particularly useful in high-resolution imaging where lighting quality and uniformity are critical to observing fine structures.
