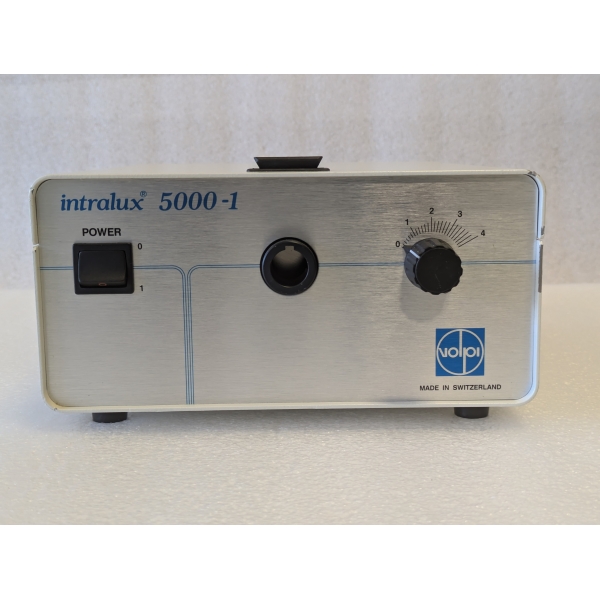

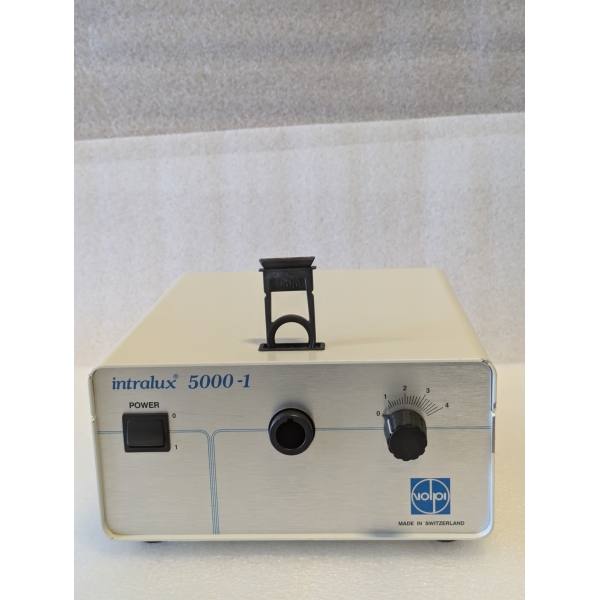

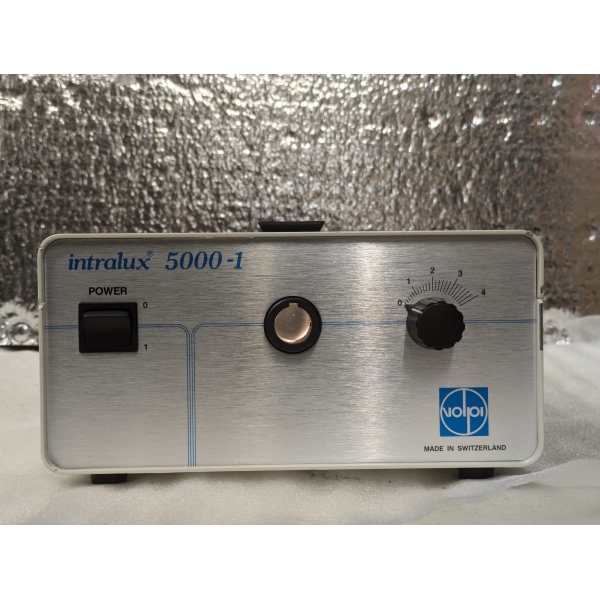

VOLPI INTRALUX 5000-1 COLD LIGHT SOURCE ILLUMINATOR

VOLPI INTRALUX 5000-1 LIGHT SOURCE ILLUMINATOR
The Volpi Intralux 5000-1 Light Source Illuminator is a high-performance light source commonly used in microscopy, fluorescence imaging, and endoscopy applications. Volpi is known for creating high-quality light sources with precise control over intensity and wavelength for various optical systems. The Intralux 5000-1 is part of their series of illuminators that offer high-output illumination for scientific and industrial imaging systems.

Descriptions of the Volpi Intralux 5000-1 Light Source Illuminator:

• High-Intensity Light:

The Intralux 5000-1 is designed to provide high-intensity white light with excellent uniformity. It is ideal for fluorescence and transmitted light applications, as well as for endoscopy.Offers superior brightness and a broad spectrum, suitable for various imaging and microscopy tasks.

• Powerful and Efficient:

This illuminator uses halogen lamps for stable, bright output and includes a cooling system to manage the heat generated by the high-intensity light.
It provides high light intensity and a long operational life for consistent and reliable performance in demanding applications.

• Precise Control:

The Intralux 5000-1 offers adjustable light intensity, which is essential for controlling the brightness during microscopic imaging, fluorescence microscopy, and live-cell imaging.
The light source can be easily adjusted to suit various experimental setups.

• Compact Design:

The Intralux 5000-1 has a compact form factor, making it easy to integrate into existing imaging systems and microscope setups. It’s designed for easy mounting on microscopes or other equipment. It often includes fiber optic cables that provide flex

Intended of use/ Application
• For microscope illumination
• Research grade instrumentation
• Use with fiber optic ringlights, goose-necks, flexible light guides, etc.
• Constant color temperature and light emitting angle
• Continuous intensity adjustment
• Long lamp life
• Low noise/vibration

Specifications
MODEL: 5000-1
Lamptype: -DDL Halogen reflector 20V/150 W
Light type: cold halogen light
Interchangeable colour
Filter capabilities
Illumination Intensity at 450,000 ftc
Light Guide Receptacle
Uniformly Illuminated 13 mm
Light Guide Diameter
Rated Lamp Life 800 hrs
Color Temperature 3190°K, constant
Light Adjustment Crescent shaped diaphragm
Max Housing Temp. 113°F
Dimensions, H x W x D 10.5 x 20.6 x 24.1 cm(4.13 x 8.13 x 9.5 in)
Weight 6.3 kg (13.89 lb)

Intralux light sources have represented the best in Fiber Optic Cold Light Illumination
the world for over 25 years. They provide reliable, dependable, high-intensity cold halogen light for use with all Volpi fiber optic components in microscopy applications.
The Intralux Series is equipped with the most advanced features and highest quality components available. It includes InfraRed Reflecting Filters to ensure the coldest light possible and the unique patented Crescent Shaped Diaphragm,which provides constant color temperature and light emitting angle, and continuous intensity adjustment.
All of these light sources feature a filter slot for easily interchangeable color and daylight conversion filter capability. Three models are available to choose from.
The IX 4000-1 is a 90W unit providing 320,000 footcandles of illumination and a 1000-hour lamp life. The IX 5000-1 is a 150W unit providing 450,000 footcandles of illumination and a 800-hour lamp life. The IX 6000-1 represents the topof-the-line in features with both a high and a low voltage setting to choose from, providing 670,000 and 370,000 footcandles of illumination respectively. Lamp life ranges from 100 hours on the high setting to 1400 hours on the low setting.
