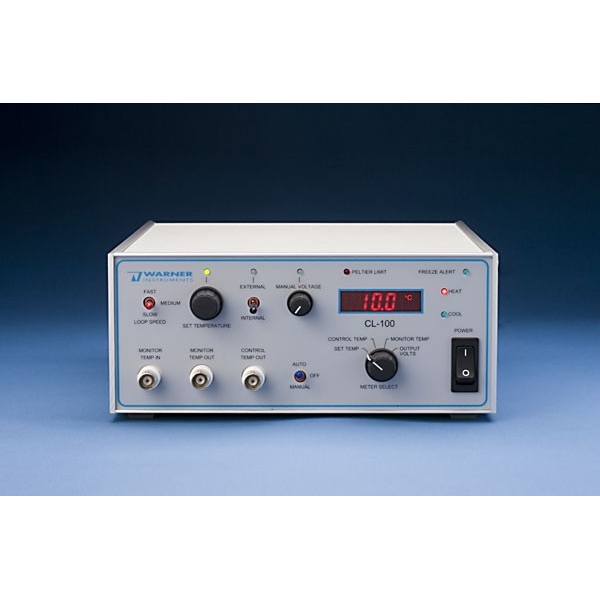

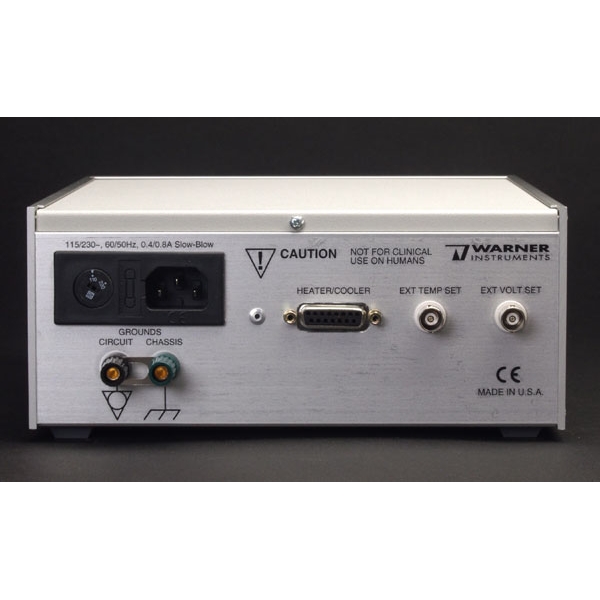

Warner Instruments CL-100 Bipolar Temperature Controller w/SC-20 heater/cooler

The CL-100 Temperature Controller is an automatic single channel controller capable of accurately maintaining a Peltier device between 0° and 50°C. The CL-100 will also maintain a resistive heater from ambient to +65°C.

While the instrument has several uses, it is specifically designed to control the Warner SC-20 Dual In-line Solution Heater/Cooler. When coupled with the SC-20, the CL-100 provides efficient control of perfusion solution temperatures.

The unit is simple to use with a single control for temperature adjustment and a loop speed switch to optimize the response of the system. Power for the instrument is provided by an ultra low noise power supply making it suitable for use in sensitive electrophysiology applications.

Built-in circuitry limits the maximum temperature of the Peltier to prevent damage and a freeze alert indicates when the cold side of the Peltier reaches 0°C.

Highlights :

• Slow ramped DC power for quiet operation suitable for electrophysiology applications
• Can be used with both Peltier devices (e.g.SC-20) & resistive heating applications (e.g. Series 20 platforms)
• Built-in protection for Peltier devices
• Single control temperature adjustment
• Freeze alert and alarm circuitry
• External inputs for computer control of set temperature or applied voltage
• Auto and manual controls
• Three feedback speeds selectable

The CL-100 temperature controller comes with the following:

• CL-100 Temperature Controller

• SC-20 In-line Heater/Cooler (new)

• TA-29 Cable with bead thermistor (new)

• Power cable
