HARVARD APPARATUS SMALL ANIMAL VENTILATOR MODEL 683 Maximize
Next

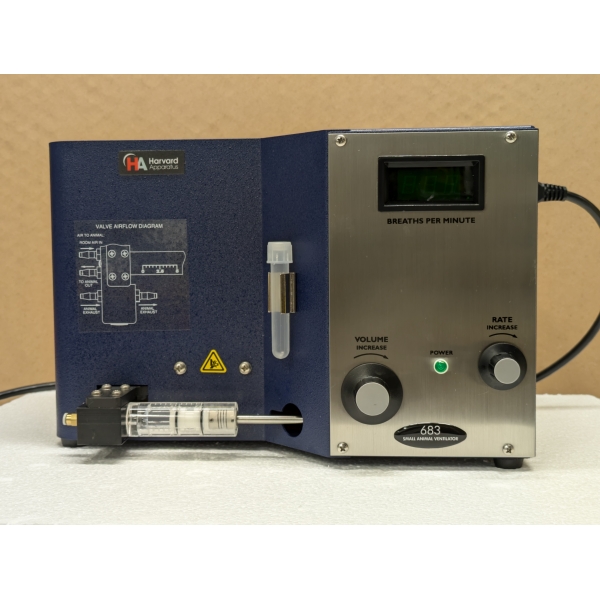

HARVARD APPARATUS SMALL ANIMAL VENTILATOR MODEL 683

Model 683 Small Animal Ventilator comes standard with two piston and cylinder assemblies.The smaller piston (which comes installed) allows tidal volumes to be set from 0.5 to 5.0cc in 0.5cc increments and the larger cylinder allows tidal volumes of 3.0 to 30 cc in 0.3 cc increments. Setting the cylinder stroke between gradations it is possible to achieve finer resolution in tidal volume settings.

More details

1 Item in stock

Warning: Last items in stock!

$1,200.00

You are buying one used HAVARD APPARATUS RODENT VENTILATOR MODEL 683. This Ventilator come in different type of syringe as 30cc or 5cc with Nalgene nontoxic autoclave tube. The ventilator model 683 was removed from working laboratory, cleaned well and been tested by a professional technician and guaranteed to be fully operational.
Description:
  • The HAVARD APPARATUS SMALL ANIMAL VENTILATOR MODEL 683 is designed for use with small animals such as mice, rats, and mammals.
  • Ideal for small animal research, preventing excessive pressure on animal lungs.
  • This unit has a respiratory rate of 18-150 strokes per minute and a tidal volume range of 0.5-10ml.
  •  This ventilator is perfect for those in the intended use/discipline of small animal respiratory care.
  •  It is a reliable and efficient unit that can provide great results.
  •  Has Nalgene 8000 non toxic autoclave tubes of 3/16'' ID X 1/16 wall.
  • Select a specific type of syringe either 5cc or 30cc.
Additional information:
The Model 683 Small Animal Ventilator comes standard with two piston and cylinder assemblies. The smaller piston (which comes installed) allows tidal volumes to be set from 0.5 to 5.0 cc in 0.5 cc increments and the larger cylinder allows tidal volumes of 3.0 to 30 cc in 0.3 cc increments. Setting the cylinder stroke between gradations it is possible to achieve finer resolution in tidal volume settings.
  • For small animals from 250 g to 10 kg (22 lb) e.g. rats, hamsters, rabbits, cats, monkeys, small dogs
  • This ventilator is furnished with two interchangeable piston/cylinder assemblies of 0.2 to 5.0 ml/breath (5 CC) and 1.5 to 30.0 ml/breath (30 CC).
  • The smaller cylinder is factory installed, and the larger one is supplied separately.
  • The mechanical design features a linkage that enables the piston to touch the end of the cylinder at each stroke regardless of the volume.
  • This assures that all the air/gas mixture taken into the ventilator is expelled at each stroke.
  •  A positive mechanical slide valve is actuated by a cam on the motor to synchronize inspiration and expiration with the motion of the piston.
  • Any NON-EXPLOSIVE gas/air mixture can be used with the ventilator.

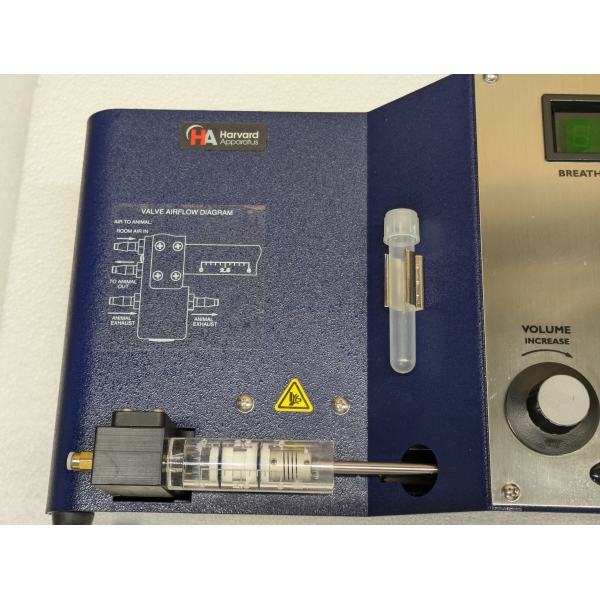

  • A three-way slide valve is attached to the mechanism plate at the end of the cylinder and actuated by a cam on the motor.

A selection of trachael cannula and endotracheal tubes are listed in the Harvard Bioscience Catalog. It is important that the volume of tubing shared by inspired and expired air (dead space) be kept to a minimum by having the “Y” or “T” connector as close to the animal as possible.

  • Condition: Used
  • Capacity: 250 g to 10 kg (22 lbs), syringe as 30cc or 5cc
  • Features: small animals
  • Application Modes: rats, hamsters, rabbits, cats, monkeys, small dogs

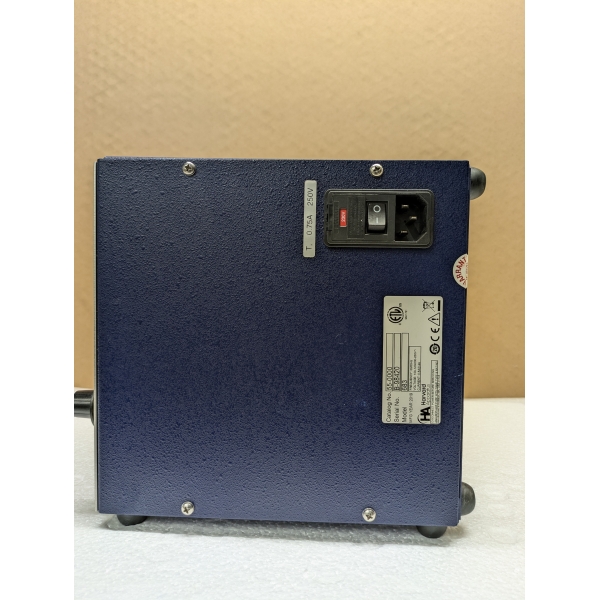

  • Power requirements: 100-20 VAC/200-230 VAC, 0.7A/0.35A max., 50/60 Hz
  • Dimensions ( W x H x D): 10x13x8 inches
  • Inputs: Nalgene 8000 non toxic autoclave tubes of 3/16'' ID X 1/16 wall.
