BK PRECISION MODEL 4040DDS-20MHz SWEEP FUNCTION GENERATOR

Product Name: B&K Precision Model 4040DDS-20MHz Sweep Function Generator (New, Fully Operational)

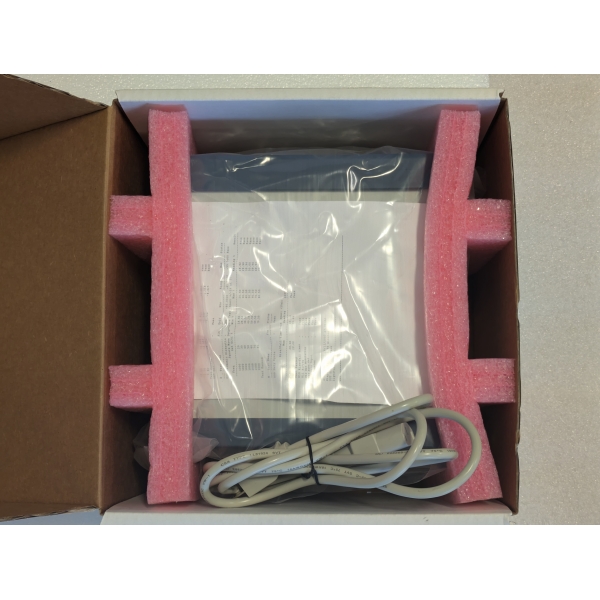

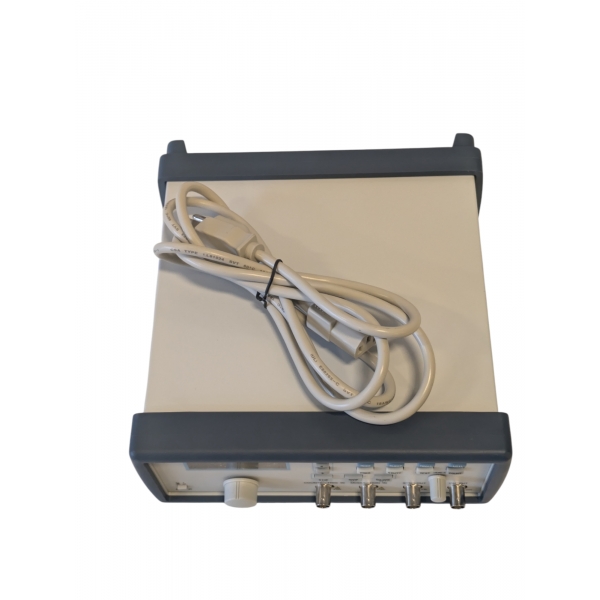

You are purchasing a new B&K Precision Model 4040DDS-20MHz Sweep Function Generator. This unit comes in its original packaging, complete with a power cable and all certificates. The function generator has been tested by a professional technician and is guaranteed to be fully operational and ready for use.

✅ Condition: New, fully operational, and in excellent working order.
✅ Guarantee: Fully functional and ready for use.

Perfect for precise and reliable signal generation in laboratory experiments.
Buy with confidence!

Description:

The B&K Precision Model 4040DDS-20MHz Sweep Function Generator is a high-quality direct digital synthesis (DDS) generator designed to generate sine, square, and triangle waves with high precision and stability. It is ideal for use in applications such as oscilloscopes and frequency counters, providing excellent signal performance over a frequency range of up to 20MHz.

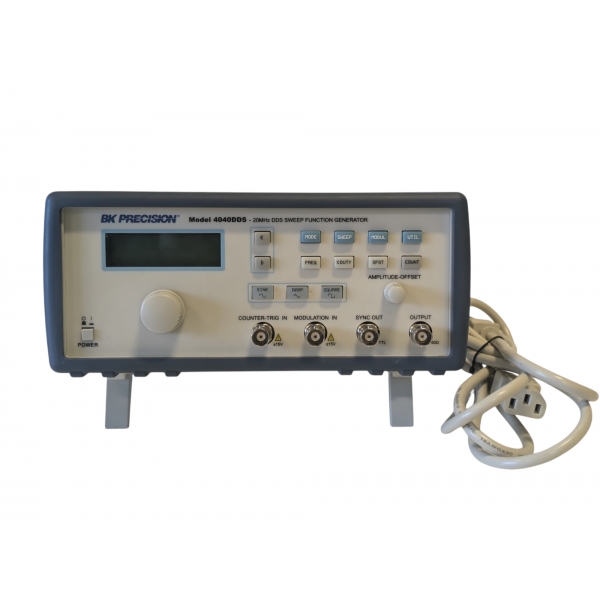

The unit features a user-friendly menu-driven interface with a large graphical LCD display, making it easy to adjust parameters. The generator provides modulation in both AM and FM, and supports sweep functions in linear and logarithmic modes. With a wide range of output options and triggering capabilities, it offers reliable and accurate signal generation for various experimental applications.

Key Features:

• Frequency Range: 0.1 Hz to 20 MHz (sine and square), 0.1 Hz to 2 MHz (triangle and ramp)
• Waveforms: Sine, square, triangle, and ramp waveforms
• Modulation: Amplitude modulation (AM) and frequency modulation (FM)
• Sweep Functions: Linear or logarithmic sweep for adjustable duty cycle and DC offset
• User-Friendly Interface: Large, informative LCD display with rotary knob for waveform adjustments
• Triggering Capabilities: Internal, external, and manual trigger sources, with gated modes of operation
• Accuracy: 0.01% (100 ppm) with 4-digit resolution or 10mHz

Specifications:

• Frequency Range (Sine & Square): 0.1 Hz to 20 MHz
• Frequency Range (Triangle/Ramp): 0.1 Hz to 2 MHz
• Waveforms: Sine, square, triangle, ramp
• Accuracy: 0.01% (100 ppm)
• Resolution: 4 digits or 10 mHz
• Modulation: AM and FM
• Operating Modes: Continuous, Triggered, Gate, and Trigger Source (Internal, External, Manual)
• Trigger Rate: 10 µs to 10 s (Internal Trigger)
• Output Type: TTL sync-out, 50 ohm output
• Power Requirements: 100-240V, 47-63Hz, 0.5-250VA (25VA max)
• Dimensions: Compact, desktop design with clear LCD display

Applications:

• Signal Generation: Ideal for use with oscilloscopes, frequency counters, and other laboratory instruments.
• Laboratory Experiments: Perfect for precise waveform generation in various experimental setups.
• Signal Modulation: Useful for experiments requiring both amplitude and frequency modulation.

Condition Details:

• New and Unused: This unit comes in its original box, including a power cable and certificates. It has been thoroughly tested and is fully operational.

Ready for Immediate Use: Perfect for use in precision signal generation for laboratory and experimental application

Waveform                    Frequency

 Sine                             0.1Hz   to   20MHz

 Square                        0.1Hz   to   20MHz

 Triangle, Ramp          0.1Hz   to   2MHz

 Accuracy                     0.01 % (100 ppm)

 Resolution                  4 digits or 10mHz

Operating modes

Continuous Output-continuous at programmed parameters.

Triggered Output-quiescent until triggered by an internal or external trigger, then one waveform cycle is generated to programmed parameters, up to 2MHz.

Gate-Same as triggered mode, except waveform is executed for the duration of the gate signal. The last cycle started is completed.

Trigger Source-Trigger source may be internal, external or manual. Internal trigger rate 10us to 10s.
