WPI A310 AccuPulser PULSE GENERATOR Model: SYS-A310

Product Name: WPI A310 AccuPulser PULSE GENERATOR  Model: SYS-A310
Condition: This instrument was only lightly used. It was tested, cleaned and comes with 90-day warranty. Please review the posted photos for a detailed view of its condition and performance. If you have any questions or need additional information, please don’t hesitate to ask

Description:

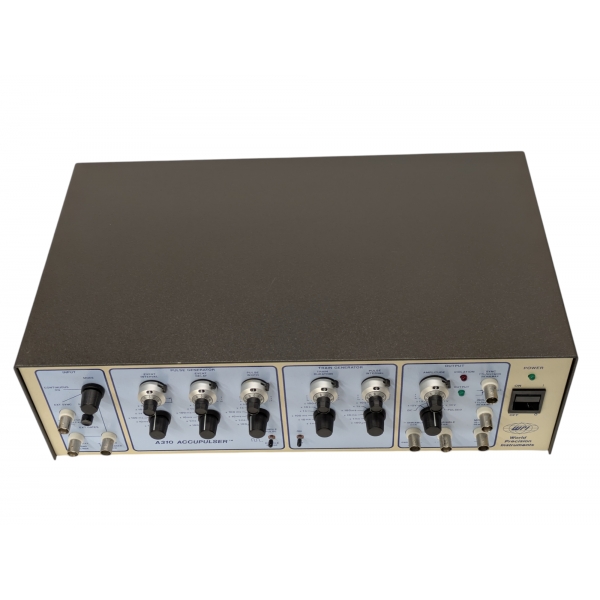

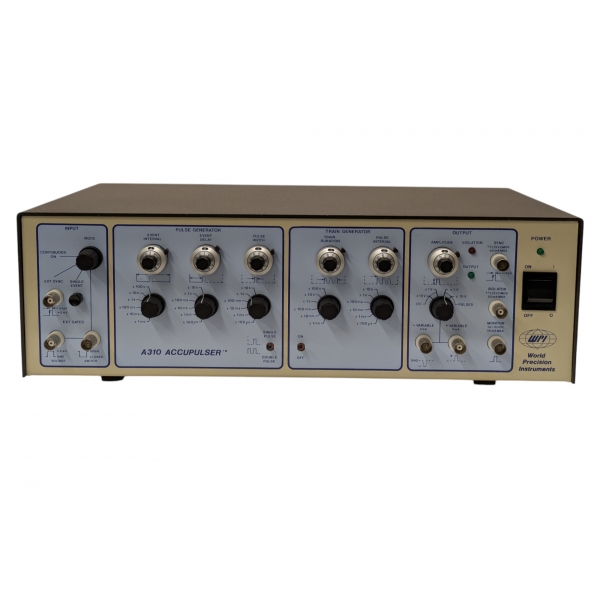

The WPI A310 AccuPulser Model SYS-A310 is a second-generation pulse generator/stimulator that offers a combination of digital electronics' precision and the fine resolution and continuous adjustment characteristics of analog circuitry. This system allows for highly controlled and reproducible pulses, making it ideal for a variety of electrophysiology, neuroscience, and biomedical research applications. The A310 can deliver single or double pulses in continuous, single-shot, or train/burst modes, with pulse parameters that are adjustable over a broad range. The timing parameters are entered through ten-turn dials and six-position range switches, ensuring precise control with accuracy within 1% of the set value.

The A310 features five separate outputs, including an ISOLATOR output for driving stimulus isolators, a MONITOR output for oscilloscope viewing, and VARIABLE outputs with fine amplitude resolution. It also includes SYNC outputs that can be used for synchronizing with other devices. The AccuPulser's versatility and precision make it ideal for nerve stimulation, muscle research, and bioelectrical measurements in the laboratory.

• Hybrid Technology: Combines digital precision with analog continuous adjustment for optimal control.
• Adjustable Timing Parameters: Accurate control over pulse frequency, duration, and amplitude with continuous variability across six ranges.
• Multiple Output Options:
  • ISOLATOR: TTL & 5V CMOS compatible.
  • MONITOR: 10-15V signals for monitoring purposes.
  • VARIABLE: Amplitude variable from 0 to ±10V, with 1mV resolution.
  • SYNC: TTL and 5V CMOS compatible, synchronized with each pulse interval.
• Flexible Operating Modes: Single-shot, continuous, and burst/train modes for diverse applications.
• Panel Indicators: Visual feedback for timing violations and active outputs.

Specifications:

• Timing Parameters:

  • Accuracy: Better than 1% of the set value, continuously variable across six ranges
  • Event Interval: 100 µs to 1000 s
  • Event Delay: 10 µs to 100 s
  • Pulse Width: 10 µs to 100 s
  • Train Duration: 100 µs to 1000 s
  • Pulse Interval: 20 µs to 100 s (50 KHz max pulse frequency)

• Inputs:

  • EXT SYNC: Accepts 1 µs minimum pulses, TTL, CMOS, RS232C compatible
  • EXT GATES VOLTAGE: Accepts 1 µs to ∞ pulses, TTL, CMOS, RS232C compatible
  • EXT GATES SWITCH: Any switch closure, 5 mA max source

• Outputs:

  • SYNC: ≈5 µs, TTL & 5V CMOS compatible, 20 mA max sink/source
  • ISOLATOR: TTL & 5V CMOS compatible, 20 mA max sink/source
  • MONITOR: 10-15 VDC, 50 mA max sink/source
  • +VARIABLE/-VARIABLE: 0 to ±1 V (low range), 1 mV resolution, 0 to ±10 V (high range), 10 mV resolution, 5 mA max sink/source, <500 µV pulsed noise at 100 kHz bandwidth, <500 µV DC noise, <1 ohm output impedance

• Signal Ground: Connected to chassis ground, removable

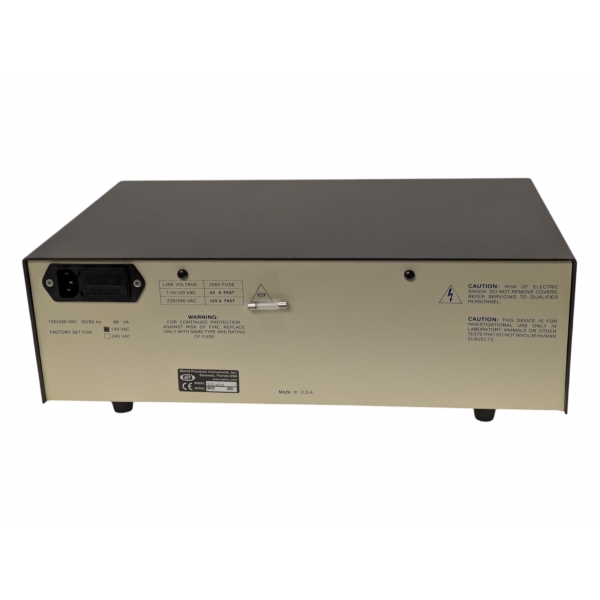

• Power: 95-130 VAC or 190-260 VAC, switch selectable, single-phase, 50/60 Hz, 20 VA

• Fuse (Older models):

  • 120 V: 0.25 A, fast, 0.25 x 1.25” USA
  • 230 V: 0.13 A, fast, 0.25 x 1.25” USA

• Fuse (2019 models):

  • 120 V: 0.25 A, fast, 5 x 20 mm metric
  • 230 V: 0.13 A, fast, 5 x 20 mm metric

• Temperature Range: 10° C (50° F) to 40° C (104° F)

• Dimensions:

  • Height: 134 mm (5.25 in.) plus 16 mm (0.6 in.), removable bail
  • Width: 432 mm (17.0 in.)
  • Depth: 242 mm (9.5 in.)
  • Mountable in standard ANSI/EIA RS310C 19 in. rack

• Weight:

  • 4.1 kg (9 lb)
  • Shipping weight: 5.5 kg (12 lb)

Condition Details:

• Used and Tested: The WPI A310 AccuPulser has been fully tested to ensure it functions as expected.
• Good Working Condition: Performs reliably, with minimal signs of previous use. Ready for immediate use in research and laboratory settings.

Included Items:

• WPI A310 AccuPulser Model: SYS-A310
• Power Cable (compatible with unit specifications)
• User Manual available upon request
