GILSON PERISTALTIC PUMPS MINIPULS 3

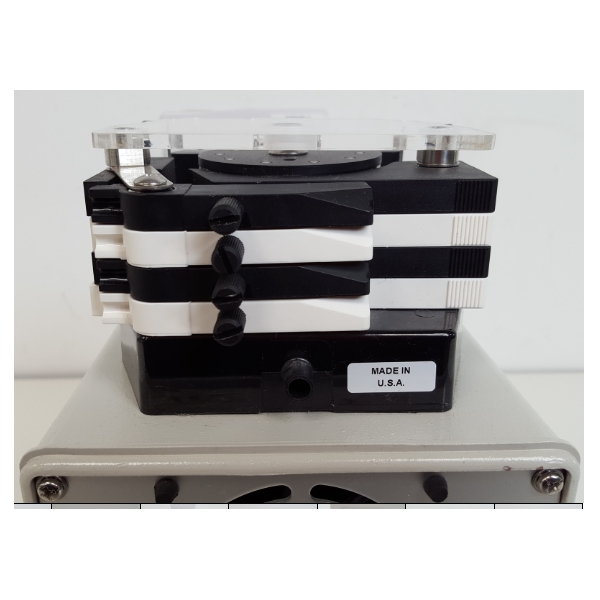

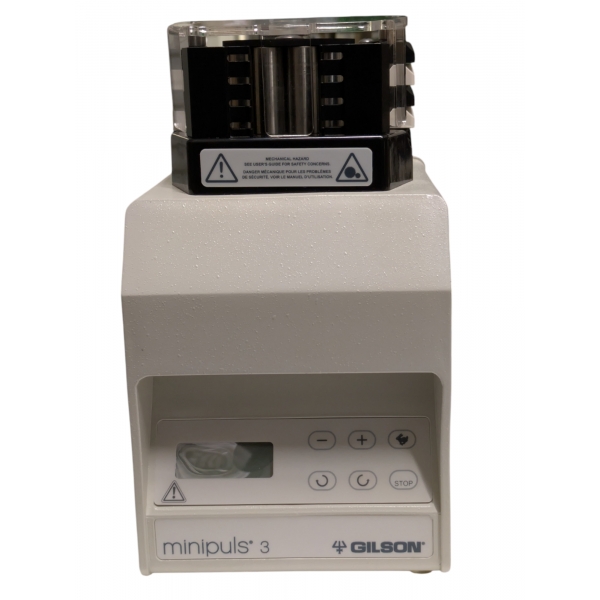

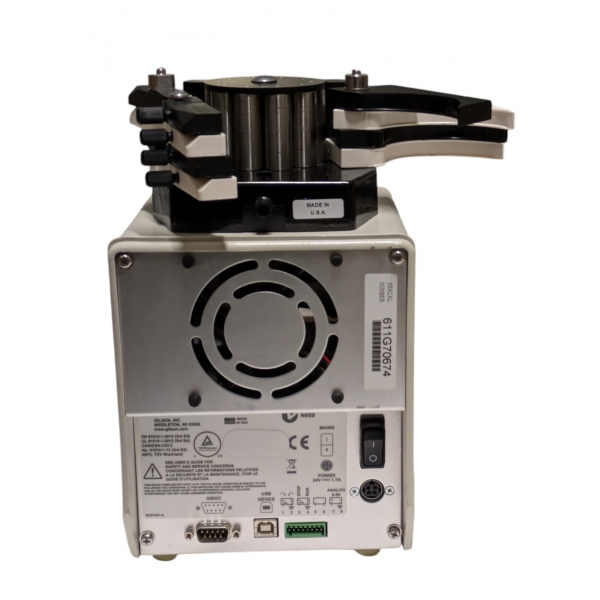

Gilson MINIPULS 3 Peristaltic Pump (Used, Tested, Fully Operational)
You are purchasing a used Gilson MINIPULS 3 peristaltic pump, designed for high-resolution and precise liquid handling in laboratory processes. This peristaltic pump combines microprocessor speed control with a high-torque stepper motor to deliver smooth, low-pulse flows without causing sample degradation. It has been thoroughly tested and is guaranteed to be fully operational and in excellent working condition.
✅ Condition: Used, fully operational, and in good working order.
✅ Guarantee: Fully functional and ready for use.
A peristaltic pump that delivers high resolution and precision speed and control for delivering smooth, low pulse flows without sample shearing or degradation.
Gilson’s MINIPULS 3 is a peristaltic pump specifically designed to meet process laboratory liquid handling needs. The MINIPULS 3 peristaltic pump combines microprocessor speed control with a high-torque stepper motor. Chemical-resistant pump heads, equipped with 10 stainless steel rollers, set the performance standard in producing smooth, low-pulse flow and reproducible flow rates at higher pressures.
Key Features
- Quickly Interchangeable Pump Heads:
– Standard flow rates (1, 2, 4, or 8 channels)—0.3 µL/min to 30 mL/min at a maximum pressure of 0.5 MPa. – High flow rates (2 or 4 channels)—1 mL/min to 220 mL/min at a maximum pressure of 0.3 MPa. – Each head accepts different tubing sizes, making the multipurpose pump head an economical choice
- Keypad Functions: Start/Stop, Direction of Flow, Increase/Decrease Flow, Prime
- Head Speeds: Adjustable from 0 to 48 rpm by increments of 0.01 rpm up to 9.99 rpm and by 0.1 rpm at above 10 rpm
- Motor Speed Stability: Maximum of 0.5% for any variation of line voltage, torque, or temperature (from 0 to 40°C)
- Compatibility: Easy to integrate into your existing system – control through the keypad or remotely through another device (by electrical contact or computer)
- Compact Design: 15 cm x 17.5 cm x 18 cm (W x D x H); lightweight at 4 kg
Specification
|
Flow rate
|
Standard model: 0.3 µL/min to 30 mL/min (72 psi/5 bar/0.5 MPa max)
|
|
High flow model: 1 mL/min to 220 mL/min (42 psi/3 bar/0.3 MPa max)
|
|
Peristaltic tubing diameter
|
Standard model: 0.25 to 4 mm (i.d.)
|
|
High flow model: 2 to 8 mm (i.d.)
|
|
Head speed
|
Continuous adjustment from 0 to 48 rpm by 0.01 rpm increments
|
|
Up to 9.99 rpm and by 0.1 increments above 10 rpm
|
|

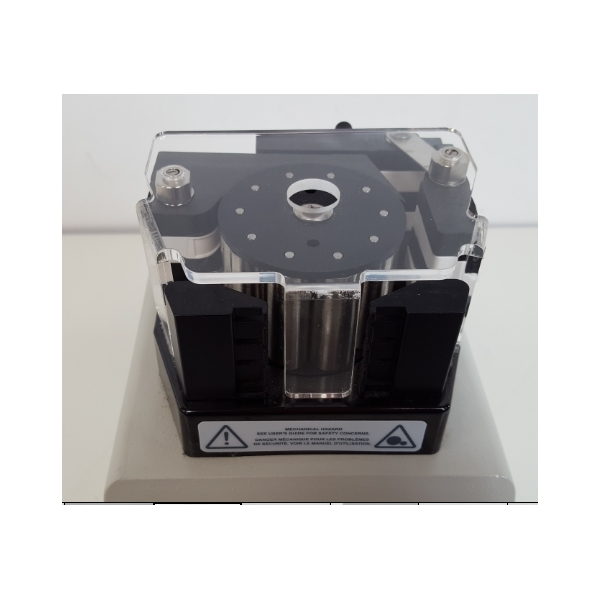

Pump head
|
Standard model: 1, 2, 4 or 8 channel heads with 10 stainless steel rollers per head
|
|
High flow model: 2 or 4 channel heads with 5 stainless steel rollers per head
|
|
Tubing materials
|
PVC for most applications – Isoversinic® for chemical inertness – Silicone for biocompatibility – PharMed® for FDA and USP class 4
|
Operating Conditions
|
Motor speed stability
|
0.5% for any variation of line voltage – Torque or temperature
|
|
Line voltage
|
90V to 132V for 110 voltage selection: 180V to 264V for 220 voltage selection
|
|
Line frequency
|
47 to 63 Hz
|
|
Power consumption
|
Full load 45 W at 220V – No load 35 W at 220V
|
|
Operating temperature
|
0-40° C No warm-up time required
|
|
Dimensions (w x h x d)
|
15 x 18 x 17.5 cm (5.0 x 7.1 x 6.9 in)
|
|
Weight
|
4 kg (9 lbs)
|
|

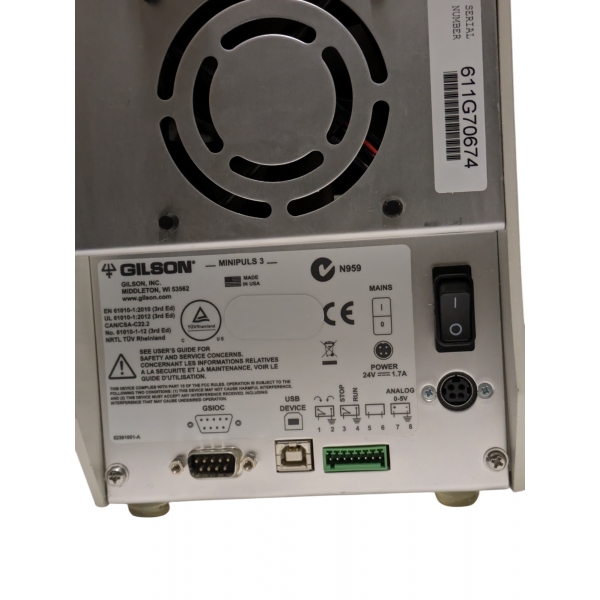

Input/Output options
|
Contact closure: Two TTL-compatible inputs for control of start/stop and direction of flow
|
|
Voltage input: One 5V analog signal for variable control of motor speed
|
|
Serial: Gilson Serial Input/Output Channel (GSIOC) – RS-422A interface
|
|
Keypad functions
|
Start – Stop – Direction of flow – Increase and decrease flow – Prime
|
The Gilson MINIPULS 3 Peristaltic Pump is ideal for a variety of laboratory applications requiring precise, low-pulse liquid handling. Some common applications include:
- Molecular Biology: Accurate fluid transfer for PCR setups, gel electrophoresis, and reagent mixing.
- Pharmaceutical Research: Dosing and dispensing of liquids with controlled flow rates for drug formulation and testing.
- Chemical Processes: Reliable fluid handling in chemical analysis, titrations, and synthesis.
- Bioprocessing: Transfer of delicate samples without degradation or shear stress, suitable for cell culture media or other biological fluids.
- General Lab Use: Ideal for consistent, reproducible liquid handling in applications such as mixing, feeding, and dispensing.
Included:
- Gilson MINIPULS 3 Peristaltic Pump
- Interchangeable Pump Head
