WARNER VC-6 Six Channel Perfusion Valve Controller

Warner Instruments VC-6 Six Channel Perfusion Valve Control System (Used, Fully Operational)

You are purchasing a used Warner Instruments VC-6 Six Channel Perfusion Valve Control System, a reliable and precise solution for controlling perfusion solutions in experimental setups. This unit was removed from a working laboratory, cleaned and powered on.

✅ Condition: Used, fully operational, and ready for use.
✅ Guarantee: Guaranteed to be fully functional.

Description:

The Warner Instruments VC-6 Six Channel Perfusion Valve Control System is designed to offer precise control over the delivery of perfusion solutions in electrophysiology, neurobiology, cell biology, and other laboratory experiments that require rapid solution switching. The system can independently control up to six valves, offering users flexible and reliable control over perfusion processes. This system is essential for applications where precise fluid delivery and timing are crucial.

Equipped with flexible control options, including manual, off, or external TTL-compatible signals, the VC-6 is versatile enough to fit a wide range of experimental setups. It also features an event marker pulse for synchronizing valve transitions with data acquisition systems. The system is designed to minimize heat transfer during valve transitions, ensuring stability of your solutions.

Key Features:

• Valve Control: Selectable manual, off, or external (TTL-compatible +5V via BNC connector) control options.

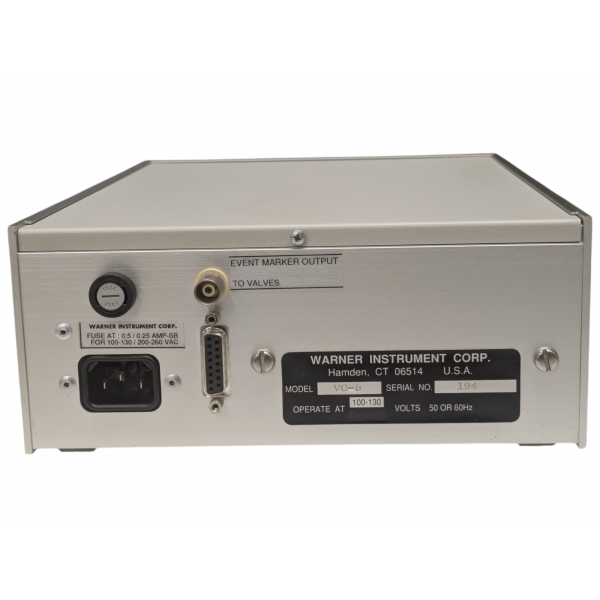

• Event Marker Pulse: 500 ms nominal logic-level pulse generated for each valve transition, available via a rear-panel BNC connector for synchronization with data acquisition systems.
• Flexible Manifold Configurations: Supports 2/1, 4/1, or 6/1 nominal dead space manifolds to accommodate various experimental setups.
• Rapid Valve Transitions: Fast response times with full power valve switching, followed by reduced power to minimize heat transfer.
• Wide Operating Temperature Range: 10-40°C (50-104°F), ensuring stable operation across most lab environments.

Specifications:

• Control Mode: Manual, Off, or External (TTL-compatible +5V)
• Event Marker: Logic-level pulse, 500 ms nominal (BNC connector on rear panel)
• Manifold Configuration: 2/1, 4/1, or 6/1 nominal dead space
• Power Supply: 110-130 VAC or 200-250 VAC, single-phase, 50/60 Hz, 20 watts
• Operating Temperature: 10-40°C (50-104°F)

• Valves 12 VDC /0.25 A to maintain pinch
• Tubing 1/32 ID x 3/32 OD tubing
• Valve Bracket Delrin. Mounts on 3/8” or 1/2” ring stand
• Connection Cable; 2.4 meter (8 ft.) connecting cable terminated with

quick disconnects on valve end and 15 pin male "D"

type connector on controller end.

• Reservoirs;

60 cc capacity syringes

Reservoir Holder Delrin. Holds six syringes with thumb screws for each

reservoir.

• Valve Controller

Switch Selection Manual, Off or External

• External Input +5 V TTL-compatible (BNC Connector)
• Dimensions (H x W x D) 89 x 203 x 305 mm (3.5 x 8.0 x 12 in.)
• Weight / Shipping Weight 3.7 kg (8 lb.) / 4.6 kg (10 lb.)

Applications:

• Electrophysiology: Ideal for precise perfusion solution delivery to cells, tissues, or organs during experiments.
• Cell Biology: Useful for applications requiring controlled and stable solution delivery, such as drug testing, gene expression studies, and assays.
• Neurobiology: Perfect for perfusion of brain slices or neural tissues while maintaining physiological conditions.
• Tissue Culture: Automates solution delivery for tissue cultures, ensuring consistent and stable conditions.

Included:

• Warner Instruments VC-6 Six Channel Perfusion Valve Control System
• Manual for setup and operation
• Power Supply Cable

Additional Features:

• Pinch Valves: Supplied as standard, dual-acting valves with both normally open and normally closed sides, ideal for easy maintenance and solution flow control.
• Valve Transition Speed: Fast valve transitions (20-50 ms typical) with minimized heat transfer, ensuring solution stability.
• System Configuration: Available in basic or complete systems with pinch or Teflon valves, syringes, tubing, and connectors.
