Drummond Scientific Nanoject III Programmable Nanoliter Injector System

The Drummond Nanoject III system has been designed for accurate variable volume 0.6-999.9nl injection into cellular models such as oocytes and embryos. A user-friendly programmable touchscreen enable easy setup and operation.

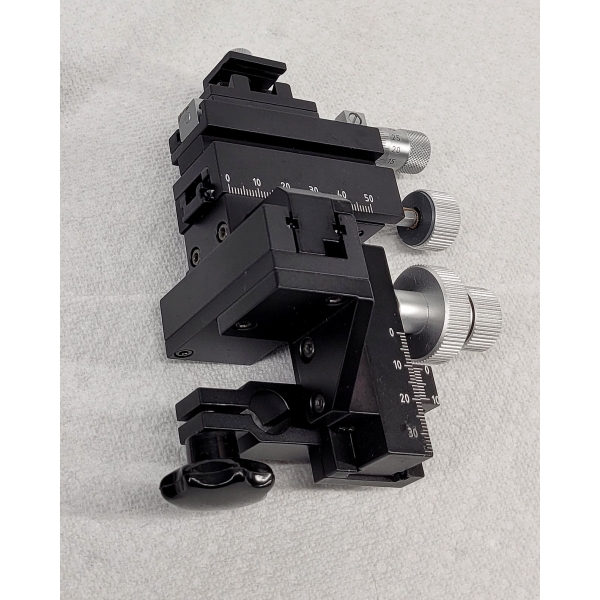

Condition: This item is new. The MM33 micromanipulator was lightly used. It comes with a 180-day warranty.

(Estimated Retail Price: $4,241.00. Compare it to our price!)

More details

More info
Comments

Nanoject III is the latest addition to Drummond Scientific state-of-the-art tools, offering users ideal control and proven precision. For accurate injection volumes down to 0.6 nanoliters, the Nanoject III Programmable Nanoliter Injector is the feature-rich tool designed for precision and usability. With a few taps on the touchscreen, users can program the state-of-the-art unit for efficient single manual injections or multiple injection cycle recipes.

The unit incorporates proven hydraulic technology to ensure accurate, consistent injection volumes. And no O-Ring is required with easy positive micropipet attachments.

Enjoy a wide range of applications thanks to user-friendly design coupled with proven technology that gives operators the ability to select and control the injection rate. The Nanoject III opens a world of possibilities for lower injection volume management.

Please Note: If your process requires injection volumes from 2.3 nanoliters to 69.0 nanoliters, consider the lower cost, easy to use, Nanoject II Auto-Nanoliter Injector (see our other listings)

Features:

User-Friendly Programmable Touchscreen Operation - Potential Applications Expanded
Easy Positive Micropipet Attachments - No O-Rings Required
Proven Hydraulic Technology - Ensures Accurate and Consistent Injection Volumes
Universal Power Source - Supplied with 4 Interchangeable Adapter Plugs
Total Sample Volume - 4.2 μl
Injection Volumes - 0.6 nL-999.9 nL
Rate of Injection - 1 nL per second - 200 nL per second
Fill/Empty Volume Speed - 10 nL per second - 200 nL per second
Can store up to 8 programs
Auto Homing function of the wire plunger
Micropipette I.D. size 2-3 μm minimum
With Optional Footswitch Accessory - Capabilities of fill, empty, and inject
Only Drummond supplied glass is recommended and not to be used with Filament glass
Glass Micropipette Dimensions: OD: 0.045" (1.14mm) and ID 0.021" (0.53mm)

Specifications
Total Sample Volume:	4.2 µL
Fill / Empty Volume Speed:	10 - 200 nL/sec
Injection Volume Range:	0.6 - 999.9 nL
Injection Rate:	1 - 200 nL/sec
Plunger Trave:	23 mm
For Use With (Application):	Microinjecting (animal use only)
Power:	100-240 VAC; 50/60 Hz
Display:	Color, Touch Sensitive Keypad
Glass Micropipette Dimensions:	OD 0.045˝ (1.14 mm) / ID 0.021˝ (0.53 mm)
