AGILENT 54621A OSCILLOSCOPE MEGA ZOOM 60MHz 200MSa/s

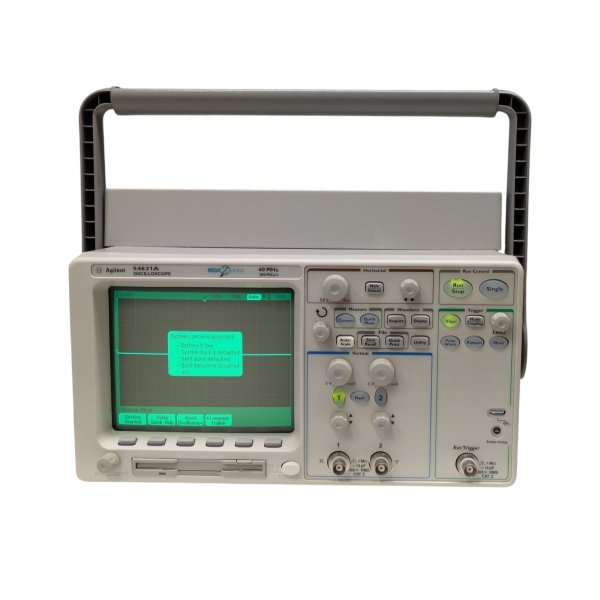

Agilent 54621A Oscilloscope (Used, Tested, Fully Operational)

You are purchasing a used Agilent 54621A Oscilloscope, an advanced 2-channel, 60MHz bandwidth oscilloscope designed to provide high-performance measurement capabilities. It has been thoroughly tested, and we guarantee its full functionality and excellent working condition.

✅ Condition: Used, fully operational, and in good working order.
✅ Guarantee: Fully functional and ready for use.

Key Features:

• 60 MHz Bandwidth: Ideal for a wide range of analog and digital testing with 60 MHz bandwidth, suitable for many types of signals and circuit analysis.
• 200 MSa/s Sample Rate: High sample rate ensures you can capture fast-changing signals with excellent accuracy, even at long time intervals.
• MegaZoom Deep Memory: With up to 8 MB of deep memory, the 54621A oscilloscope allows you to capture long, non-repeating signals while maintaining a high sample rate. Unlike other oscilloscopes, MegaZoom memory is always available, so you don’t have to toggle between modes to view details or long captures.
• High-Definition Display: Equipped with a high-definition display, you will be able to see more signal detail than most other scopes in its class, with twice the horizontal resolution and an update rate of up to 25 million vectors per second.
• Flexible Triggering: Provides I²C, CAN, LIN, USB, and SPI triggering out of the box, which is perfect for analyzing mixed analog and digital systems. This flexible triggering helps you isolate complex signals and analyze fault conditions.
• CAN and USB Triggering: With specialized triggers for CAN (Controller Area Network) and USB, the 54621A simplifies the analysis of these complex signal types.
• Waveform Math & FFT: Features include math functions like addition, subtraction, integration, differentiation, and Fast Fourier Transforms (FFT) for advanced signal analysis.
• Autoscale: Automatically adjusts settings to display signals optimally, providing fast and accurate results.
• Built-In Floppy Drive: Save your waveform data, setups, and images to disk for easy retrieval and sharing. Supports TIF, BMP, and ASCII file formats.
• IntuiLink Software: Simplify your data transfer process with IntuiLink, a free software that helps you quickly transfer data or insert oscilloscope snapshots directly into Microsoft Excel or Word documents.
• Built-in Help System: With help in 11 languages, the built-in help function makes setup and usage of the oscilloscope easy, with on-screen guidance at the press of a button.

Applications:

• Mixed Signal Analysis: Perfect for analyzing designs with both analog and digital components, providing the necessary features for thorough analysis.
• Microcontroller and DSP Applications: Designed to handle mixed analog and digital signals, which are prevalent in microcontroller (MCU) and Digital Signal Processor (DSP) based designs.
• Debugging & Validation: Ideal for engineers needing to debug complex systems, as the scope's high bandwidth, deep memory, and triggering capabilities offer detailed insight into both fast and slow signals.
• Automotive and Industrial Applications: Can handle communication protocols like CAN, LIN, I²C, and USB, making it suitable for automotive and industrial electronics debugging.
• Audio, Video, and Sensor Applications: Capture and analyze real-world signals such as audio, video, temperature, or pressure signals, making it useful in a variety of research and development projects.

Specifications:

• Bandwidth: 60 MHz (2 channels)
• Sample Rate: 200 MSa/s
• Memory Depth: 2 MB of MegaZoom deep memory per channel
• Channels: 2 channels
• Display: High-definition, with up to 25 million vectors per second update rate
• Triggering Options:
• I²C, CAN, LIN, USB, and SPI
• CAN Trigger Module (N2758A option)
• Connectivity:
• Parallel and RS-232 interfaces
• Optional GPIB interface
• IntuiLink software for data transfer to PC (Excel/Word support)
• Waveform Math: FFT, integration, differentiation, etc.
• Peak Detect: 1-ns peak detect (54640-Series) and 5-ns peak detect (54620-Series)
• Autoscale: Automatically optimizes signal display
• Floppy Drive: Built-in 1.44 MB floppy drive for storing data and setups
• Built-in Help System: 11 languages supported

Why Choose the Agilent 54621A Oscilloscope?

• Affordable and High Performance: The 54621A combines excellent value with high performance, making it an ideal solution for those needing deep memory, high-definition display, and advanced triggering at an affordable price.
• Ideal for Mixed Signal Systems: If your designs involve both analog and digital components, the flexible triggering and in-depth analysis options make this oscilloscope an excellent choice.
• User-Friendly Features: With its intuitive interface, built-in help system, and easy-to-use software, the 54621A provides a hassle-free experience for engineers and researchers.
• Long-Time Capture with High Sample Rate: Thanks to the MegaZoom deep memory, you get the benefit of capturing long time periods while maintaining a high sample rate, allowing you to see intricate signal details with ease.

Included:

• Agilent 54621A Oscilloscope
• Power Cable
• User Manual (Digital Copy)
• Floppy Disk (for setup and data storage)

The Agilent 54621A Oscilloscope is a versatile, reliable tool for a variety of testing and debugging applications. Whether you are working with mixed-signal designs or need an oscilloscope for advanced analysis of analog and digital signals, the 54621A offers the features and performance you need at a competitive price point.
