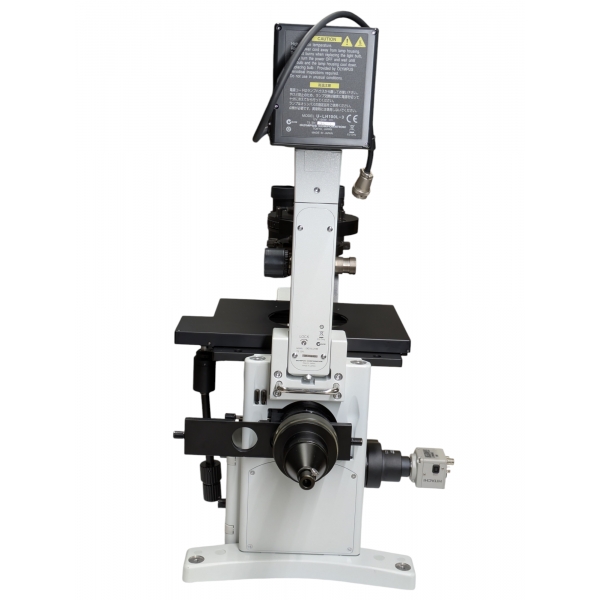

OLYMPUS IX71 INVERTED PHASE CONTRAST FLUORESCENCE MICROSCOPE

OLYMPUS IX71 INVERTED PHASE CONTRAST FLUORESCENCE MICROSCOPE

Microscope Parts Model:

• Microscope base: IX71 SIF-3
• Microscope head: U-TB190
• Microscope arm: 1X2-ILL100

You are purchasing a used Olympus IX71 Inverted Phase Contrast Fluorescence Microscope. This unit has been thoroughly tested and is in excellent working condition, guaranteed to be fully operational and ready for use.

✅ Condition: Used, fully operational, and in good working order.
✅ Guarantee: Fully functional and ready for use.

Description:

The Olympus IX71 Inverted Phase Contrast Fluorescence Microscope is an advanced imaging system designed for high-quality, high-resolution imaging in biological, medical, and research applications. Featuring a versatile mechanical XY stage, high-performance objectives, and both phase contrast and fluorescence capabilities, this inverted microscope allows for detailed imaging of live or fixed samples.

Equipped with a HITACHI CCD color camera and an Olympus lamphouse for superior illumination, the IX71 is ideal for fluorescence imaging, live cell analysis, and more. The 6-position fluorescence filter turret and DIC condenser with 4 DIC prisms offer precise control over imaging, providing excellent contrast and resolution.

Key Features:

• Inverted Microscope Design: Ideal for observing cultured cells, tissues, or other specimens that require easy access from below.
• Objectives: Includes UPlanFLN 40x and LUCPlanFLN 20x, offering a range of magnifications for detailed imaging with high numerical aperture.
• Fluorescence and Phase Contrast: Equipped with Phase Contrast (Ph1, Ph2, PhC, PhL) and fluorescence capabilities, allowing for versatile imaging of various sample types.
• Mechanical XY Stage: Allows for smooth, precise movement and positioning of the sample.
• Camera Integration: The HITACHI CCD Color Camera KP-D20BU provides high-resolution imaging, suitable for documentation and analysis.
• Illumination: Features a 12V, 100W Halogen Lamphouse and X-Cite 120 Light Source for consistent, high-quality illumination.
• DIC and Fluorescence Filter System: Includes a 6-position filter turret, with 2 fluorescence cubes for varied imaging needs.

Specifications:

• Objective Magnifications:
• 40x / 0.75 UPlanFLN ∞/0.17/FN26.5
• 40x / 0.60 Ph2 LUCPlanFLN ∞/0-2/FN22
• 20x / 0.45 Ph1 LUCPlanFLN ∞/0-2/FN22
• 10x / 0.3 Ph1 LUCPlanFLN ∞/-/FN26.5
• Two Eyepiece: WHN 10x/22
• Condenser: Olympus 1X-ULWCD 4Phase (with Ph1, Ph2, PhC, PhL, BF)
• Fluorescence: Includes 6-position filter turret with 2 cubes
• Camera: HITACHI CCD Color Camera (KP-D20BU)
• Illumination: Olympus U-RFL-T Light Source and X-Cite Light Adapter
• Lamphouse: Olympus U-LH100L-3 (12V, 100W)
• Power Supply: 12V 100W, X-Cite 120 Power Supply with light guide and adapter
• Stage: Right-handed mechanical XY stage

Included:

• Olympus IX71 Inverted Microscope with DIC and Fluorescence
• Olympus IX71 Inverted Stand
• Binocular Head with centering telescope
• WHN 10x/22 Eyepieces
• 6-position Nosepiece with 4 objectives:
• UPlanFL 40x
• LUCPlanFL N 20x
• LUCPlanFL N 40x
• UPlanFL N 10x
• Fluorescence Filter Turret with 2 Fluorescence Cubes
• DIC Condenser with Polarizer
• 4 DIC: Ph1, Ph2 PhC, PhL , BF
• Right-Handed Mechanical Stage
• 12V 100W Halogen Lamphouse
• TH4-100 Power Supply
• X-Cite 120 Power Supply, Light Guide, and Adapter
• HITACHI High-Resolution Camera (KP-D20BU)
• Camera Adapter

Standard Olympus IX71 Microscope Configuration:

Microscopy Techniques:For Brightfield with Phase Contrast and Fluorescence Microscopy

Microscope Base:

• Olympus IX71 Inverted Base with side camera port
• with a Mechanical Z-Axis

Microscope Head:

• Binocular Head
• Two Eyepieces

Fluorescence Light Path:

• Olympus fluorescence lightpath

Fluorescence Illumination:

• Olympus U-RFL-T
• Light guide
• X-cite adapter

Fluorescence filter cube turret:

• Mechanical 6-position filter cube turret

Brightfield Illumination:

• Olympus 100-Watt halogen light source
• Olympus 100-Watt halogen power supply

Objective Turret:

• Mechanical 6-position objectives turret

Objectives:

• 40x / 0.75 UPlanFLN ∞/0.17/FN26.5
• 40x / 0.60 Ph2 LUCPlanFLN ∞/0-2/FN22
• 20x / 0.45 Ph1 LUCPlanFLN ∞/0-2/FN22
• 10x / 0.3 Ph1 LUCPlanFLN ∞/-/FN26.5

Condenser:

• Mechanical condenser
• PhL ,Ph1,Ph2 PhC, BF light rings

Stage:

• Mechanical XY Stage

Camera adapter:

• UCAMD3 U-TV1X-2

Camera:

• HITACHI KPD20BU CCD COLOR CAMERA

The Olympus IX71 Inverted Phase Contrast Fluorescence Microscope is an essential tool for researchers and laboratories requiring high-quality phase contrast and fluorescence imaging. Its inverted design, combined with precise optical components, makes it suitable for cell culture, live imaging, and fluorescence-based analysis.
