CARL ZEISS MICROSCOPE AXIO EXAMINER A1 WITH MT-78-FS FIXED STAGE PLATFORM AND SUTTER XY TRANSLATION SYSTEM

CARL ZEISS MICROSCOPE AXIO EXAMINER A1 WITH MT-78-FS FIXED STAGE PLATFORM AND SUTTER XY TRANSLATION SYSTEM

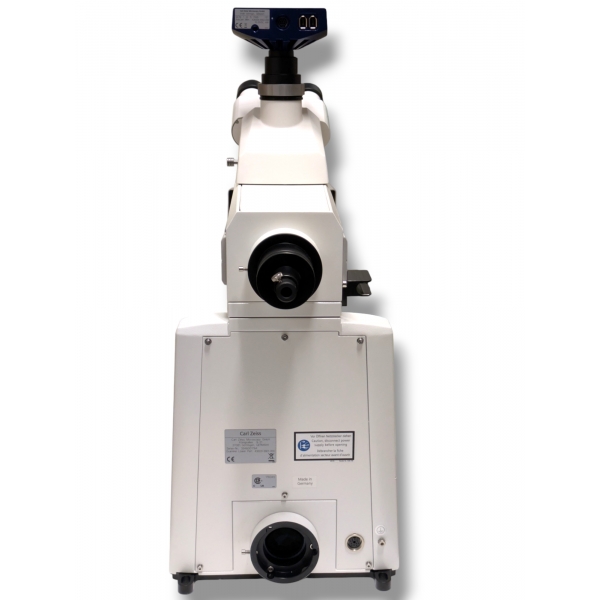

You are purchasing a used Carl Zeiss Axio Examiner A1 Microscope with MT-78-FS Fixed Stage Platform and Sutter XY Translation System. This unit has been thoroughly tested and is in excellent working condition, guaranteed to be fully operational and ready for use.

✅ Condition: Used, fully operational, and in good working order.
✅ Guarantee: Fully functional and ready for use.

Description:

The Carl Zeiss Axio Examiner A1 Microscope is a high-performance upright microscope system designed for advanced research applications. It is equipped with a MT-78-FS Fixed Stage Platform and a Sutter XY Translation System, providing precision and stability for accurate imaging and sample manipulation. Ideal for cellular and molecular biology research, this setup delivers excellent optical performance, precise control, and versatile functionality.

With high-quality objectives like the 63x / 1.0 VIS-IR α/0 W-PLAN APOCHROMAT and 5x / 0.15 N-ACHROPLAN, as well as an AXIO CAM mRm Camera, this microscope is perfect for high-resolution imaging. The motorized stage and XY translation system ensure smooth movement and precise sample positioning, while the X-cite Adapter delivers stable illumination for optimal imaging conditions.

The microscope includes CD imaging software and Zeiss Flash disk software, enabling seamless data transfer and analysis. The system is easy to operate and is backed by comprehensive documentation for setup and usage.

Features:

• Precision Stage: The MT-78-FS Fixed Stage Platform provides 25mm travel with 40 µm resolution and a 50 kg maximum load capacity, ensuring stable imaging for high-precision work.
• Motorized XY Translation System: The Sutter XY Translation System allows for accurate sample positioning with ease, ideal for detailed and repeatable imaging tasks.
• Advanced Objectives: Includes 63x, 40x (oil immersion), and 5x objectives, offering a wide range of magnification options for various applications.
• Camera Integration: The AXIO CAM mRm (60N-C1) camera, paired with a 1.0X magnification changer, ensures clear, high-quality imaging.
• Illumination: The X-cite adapter provides optimal light for accurate observation.
• Software Included: Compatible with CD Imaging Software 58/56 and Zeiss Flash Disk Software, providing a powerful suite for image processing and analysis.

Microscope Setup

• Microscope Model: Carl Zeiss Axio Examiner A1
• Stage Platform: Sutter MT-78-FS Fixed Stage
• XY Translation System: Sutter MT800 Motorized XY translation system
• Eyepiece: Carl Zeiss PL 10x/23 Br. Foc.

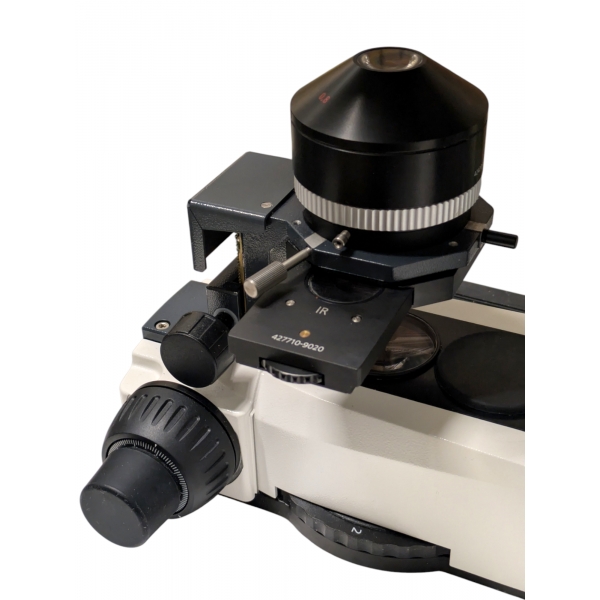

• Condenser: Carl Zeiss, aperture diaphragm (0.2, 0.4, 0.6, 0.8)
• Objectives:
• 63x / 1.0 VIS-IR α/0 W-PLAN APOCHROMAT (421280-9900)
• 5x / 0.15 N-ACHROPLAN (420930-9901)
• 20x / 0.30 Ph1 LD- APLAN (441241-9911000)
• 40x / 0.65 1.25 OIL (2)
• Magnification Changer: 4X, 60N-60N
• Camera: AXIO CAM mRm 60N-C1 (426114), 1.0X
• Light Source: X-cite Adapter 810-000022X
• Resolution: 40µm

Specifications:

• Stage Dimensions: 8in x 15.25in x 2.25in
• Travel: 25mm (1 inch)
• Resolution: 40 µm
• Load Capacity: 50 kg (110 lbs)
• Power Supply: 12V, 100W
• Magnification Changer: 4X, 60N-60N
• Camera: AXIO CAM mRm 60N-C1 (426114), 1.0X
• Objectives: Includes 63x, 40x, 5x, and 20x options
• Software Compatibility: CD Imaging Software 58/56, Zeiss Flash Disk Software

Included:

• Carl Zeiss Axio Examiner A1 Microscope
• MT-78-FS Fixed Stage Platform with Sutter XY Translation System
• Fiber Light Adapter with lens
• Magnification changer
• Power supply
• X-cite light source or illuminator
• AXIOCAM
• Stickers for numbering, symbols, and parts identification
• Screwdriver Tools Pack
• Operation Manual and Operation System Documents
• CD Imaging Software (58, 56)
• Zeiss Flash Disk Software

Magnification Options:

1. 63x / 1.0 VIS-IR α/0 W-PLAN APOCHROMAT (421280-9900): This is a high-power objective, offering significant magnification and ideal for detailed imaging, especially for visual infrared (VIS-IR) samples.
2. 5x / 0.15 N-ACHROPLAN (420930-9901): A low-power objective, useful for wide-field imaging and lower magnification.
3. 20x / 0.30 Ph1 LD- APLAN (441241-9911000): A medium magnification, suitable for both live and fixed samples.
4. 40x / 0.65 1.25 OIL (2): High-power oil immersion objective, ideal for high-resolution imaging at a medium magnification.

Additional Magnification:

• Magnification Changer: 4X, 60N-60N (This will allow you to adjust the magnification to suit different needs within the range of the objectives.)
• AXIO CAM mRm Camera: Typically used with a 1.0X magnification setting.

Total Magnification:

• The highest magnification achievable with the 63x objective and the 4X magnification changer would be 252x (63x * 4X).
• The 40x oil objective combined with the 4X changer would give you 160x magnification (40x * 4X).
• depending on the objectives and the magnification changer, you can achieve magnifications ranging from 5x to 252x.

Fixed Stage Translation System for Upright Microscopes

Designed for experiments where a large single stage is dictated, the MT-78-FS large-stage platform provides solid, stable support and ample space to attach manipulators and other instruments as needed. The rigid aluminum top plate sits firmly on two of our well-known MT-75 gantry-style stands. These stands provide height adjustment and sturdy attachment to the user’s vibration table. Multiple degrees of freedom accommodate a variety of microscope and instrument arrangements.

The MT-78-FS Fixed Stage platform, paired with a Sutter Instrument XY translator (either the motorized MT-800 or manual MT-500), offers a large, single-platform solution for researchers performing experiments requiring X-Y translation of the optical pathway in order to view multiple locations within the specimen at high resolution. Many prefer a large stage design as it lends itself to the easy addition of manipulators, perfusion systems and other equipment to the setup.

The cast aluminum top plate used in the MT-78-FS has an attractive shape with an extensive 1/4-20 threaded hole pattern on 1-inch centers. This hole pattern is appropriate for mounting Sutter MP285 or MP225 manipulator mechanicals using the mounting adapter plates that come with these devices. Optional rotating bases (285RBI) are also compatible and add flexibility. Finally, the new, MP265/M mechanical can be mounted on its narrow linear slide.

In the center of the MT-78-FS top plate is a 4X6 inch milled pocket that will accommodate a variety of aluminum stage inserts, designed to secure various commercial tissue chambers or slide holders. Custom aluminum inserts can also be provided. An available magnetic stainless steel insert carries commercial chambers or can be provided with a simple large, through hole for mounting a custom chamber. The magnetic insert allows small magnetic devices (perfusion lines, ground electrodes, small manipulators) to be mounted easily near the dish.

The MT-78-CS translates the gantry towers to provide 12.5mm of movement. For users who want additional degrees of freedom and combined increase in travel in X and Y, the MT-78-CS can also be paired with a manual or motorized translator.

FEATURES

• Stable support and solid design
• Accomodates a variety of stage inserts
• Compatible with Nikon, Olympus, Zeiss and Leica upright and inverted microscopes
• Optional XY translation available (motorized or manual)
• MT-78-FS version compatible with Sutter MT-500 or MT-800 X-Y translators

SUITABLE FOR:

• Multi-site electrophysiology

The Carl Zeiss Axio Examiner A1 Microscope with MT-78-FS Fixed Stage Platform and Sutter XY Translation System is an advanced solution for researchers and laboratories requiring exceptional image quality and precise control over sample positioning. With top-tier optics, motorized controls, and robust software, this system is ready to handle the most demanding imaging tasks.
