LUIGS&NEUMANN SM7 CONTROL SYSTEM

Luigs & Neumann SM7

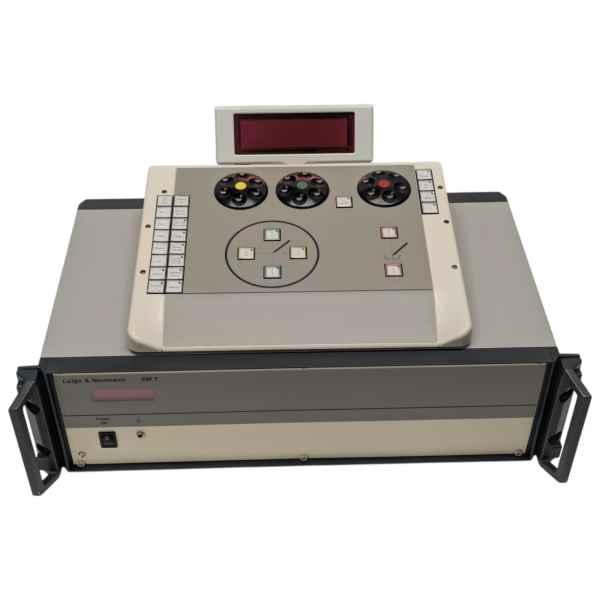

The Luigs & Neumann SM7 Control is a motor control unit designed for precise positioning of scientific instruments such as microscopes, manipulators, or measuring electrodes. It allows control of up to 72 motor-driven axes through a dedicated SM7 Keypad that provides access to movement speeds, directions, and various functions through a menu interface. This versatile system is ideal for fine-tuned positioning in research applications.

Key Features:

• Control Capabilities: Manages up to 72 motor-driven axes through a single control unit.
• Keypad Interface: Operated with the SM7 Keypad for easy control and settings adjustments.
• Flexibility: Compatible with various motorized equipment like manipulators and moving tables.
• Customizable Settings: Adjust parameters such as movement speed, direction, and handwheel resolution.
• Cross-Linking Capability: The SM7 Control can be cross-linked with other controls (SM5, SM6, SM7, and SM8). Up to 8 controls can be linked together, all operated by a single SM7 Keypad.
• Addressing and Configuration: The first control connected to the keypad is set to address 113 and is labelled as Master Control. Additional controls are assigned addresses 114-120 as Slave Controls.

Included Items:

1. LN Remote Control with Digital Screen Model: SM-7 Remote control TAS 7 – For easy operation and monitoring.
2. Set of LN Manipulator Model: Mini 23 – A compact manipulator designed for precise tasks. MODEL: Mini 23L and Mini 23R
3. LN Headstage Adapter – Ideal for electrophysiology and related applications.
4. LN RS232/V.24 Test Disk and Adapter – Ensures proper communication and functionality for connected devices.

Specifications:

• Control System: Motor control unit for precise positioning
• Motor-Driven Axes: Up to 72 axes can be controlled
• Keypad Interface: Dedicated SM7 Keypad for system operation
• Linking Capability: Supports connection of up to 8 controllers for extended control
• Addressing:
• Master control has address 113
• Slave controllers are assigned addresses 114-120
• Control Range: Adjustable movement speeds and directions for various applications
• Compatibility: Works with motorized manipulators, moving tables, microscopes, and other equipment
• Resolution: High precision with customizable handwheel resolution settings
• Connectivity: RS232/V.24 communication ports for remote control and integration

Luigs & Neumann Mini 23 Manipulator System

The Luigs & Neumann Mini 23 Manipulator System is a highly precise and reliable solution for positioning scientific instruments. Combining flexibility, stability, and high resolution, the system offers drift-free operation and allows for fine-tuned adjustments, particularly in electrophysiology and research settings. Its modular design supports the attachment of up to 8 manipulators around the optical system.

Specifications:

• Travel in XYZ: 23 mm
• Motor Resolution: 4.8 nm
• Reproducibility: Less than 1 micron
• Weight (Complete Unit): 2.2 kg
• Spindle Lead: 0.5 mm
• Smallest Reproducible Step: 20 nm

Key Features:

• Drift-free operation with adjustable X-axis patch angle
• High resolution and excellent reproducibility
• Customizable configurations with a variety of adapters available (turn adapter, back-fold adapter, fast exchange system)
• Stable mechanical design with grounding points
