EPPENDORF FEMTOJET 5247

Eppendorf FemtoJet 5247 a precise and high-quality micro-injector designed for controlled and accurate injection of micro-volumes, making it ideal for applications such as transfection, micro-manipulation, and precision research techniques.injection parameters can be set using the variable regulators:Injection pi 0.00 – 87.0 psi, time ti 0.1 – 99.9s, compensation pressure pc 0,00 – 87.0 psi.

More details

More info
Download
Comments

The FemtoJet enables minute quantities of liquid to be injected into cells. The relevant parameters (injection pressure pi and injection time ti )are set using the variable regulators. The key or connected hand or foot control or the INJECT key of the connected micromanipulator are used to trigger these two parameters. If no injections are being performed, compensation pressure pc is applied permanently.

Description:

The Eppendorf FemtoJet 5247 is a high-precision micro-injector designed to inject minute quantities of liquids into cells. With adjustable parameters like injection pressure and time, it provides excellent control and repeatability in laboratory applications. The device offers the flexibility of manual and automatic injection modes and integrates with various Eppendorf manipulators for seamless operation. The FemtoJet 5247 is an ideal choice for applications requiring micro-manipulation, such as cell transfection and other molecular biology techniques.

Precise Micro-Injection: Enables the injection of extremely small volumes into cells with high accuracy.
Adjustable Injection Parameters: The injection pressure (0–6,000 hPa), time (0.1–99.9 seconds), and compensation pressure (0–6,000 hPa) are adjustable for customized injection settings.
Manual & Automatic Injection Modes: Switch between manual or automatic time-controlled injection, providing flexibility for different experimental needs.
Built-in Clean Function: Cleans capillaries with maximum pressure to clear blockages.
Compensation Pressure: Maintains constant pressure to prevent medium from flowing back into the capillary, ensuring accurate and reliable injections.

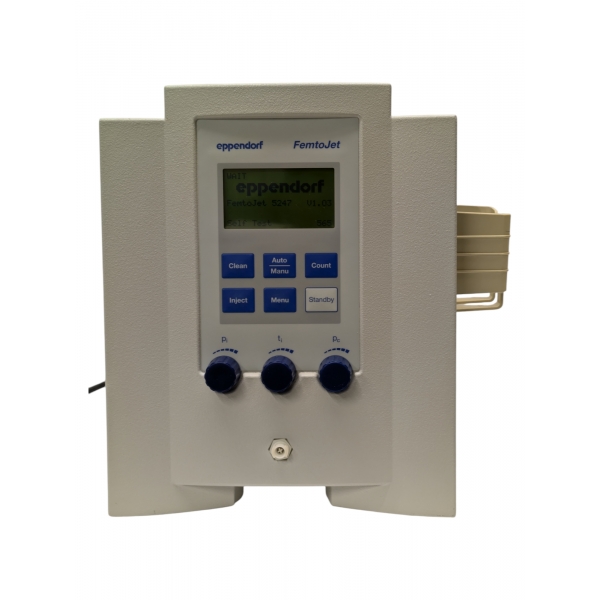

User-Friendly Interface: Features a front-mounted control panel with easy-to-use buttons for operation, including Clean, Auto/Manu, Count, Inject, and Menu.

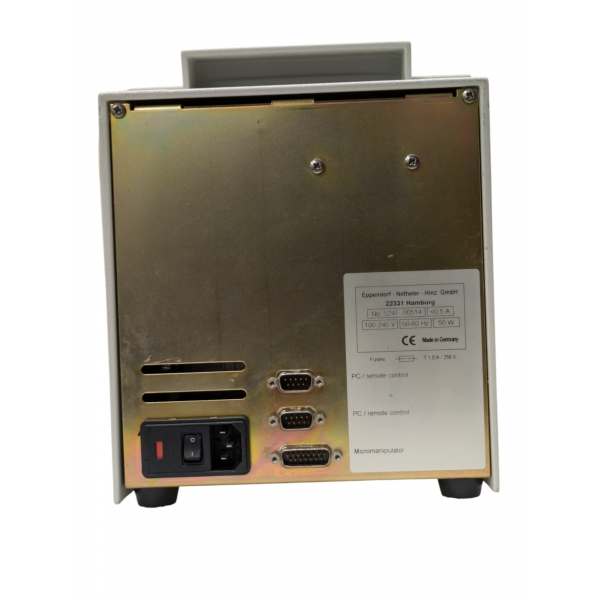

Connection Options: Compatible with foot or hand controls via 9-pin interfaces and connects to the Eppendorf manipulator via a 15-pin interface.
Rugged Construction: Durable with an easy-to-clean stainless steel interior and tough epoxy-polyester powder-coated exterior.

Specifications:

Model: Eppendorf FemtoJet 5247
Injection Pressure (pi): 0–6,000 hPa (0.00 – 87.0 psi)
Injection Time (ti): 0.1 – 99.9 seconds
Compensation Pressure (pc): 0–6,000 hPa (0.00 – 87.0 psi)
Pressure Tube Connection: Bayonet joint for easy and secure connection
Mode of Operation: Auto/Manu (manual or time-controlled)
Electrical Connection: 100-240V, 50/60 Hz
Clean Function: Maximum available pressure for cleaning capillaries
Injection Volume: Dependent on injection pressure and time, suitable for a variety of cell types and materials
Dimensions: 11X8.5X5 inches
Weight: 6.8kg

Condition Details:

Used and Tested: The unit has been fully tested and is in working condition.
Good Working Condition: The Eppendorf FemtoJet 5247 operates as intended, ensuring reproducible and accurate injection results.
Minor Cosmetic Wear: Signs of use, but does not affect functionality.

Included Items:
