SUTTER INSTRUMENT LAMBDA LS MODEL:LB-LS/0F17 XENON LIGHT SOURCE & new CERMAX xenon lamp, Wavelength Changers, Filter wheels

Sutter Instrument Lambda LS Xenon Light Source (Used, Tested, Fully Operational) – Includes New cermax Xenon Lamp, Wavelength Changers & Filter wheels

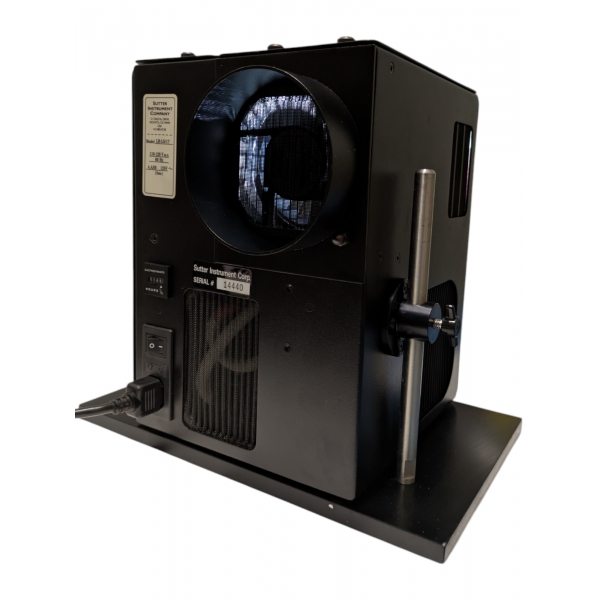

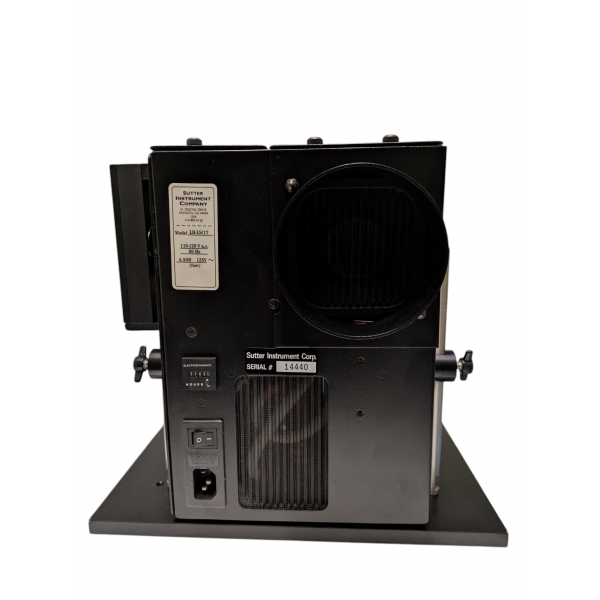

You are purchasing a used Sutter Instrument Lambda LS Xenon Light Source with a new xenon lamp, designed to provide high-intensity, flat illumination for your microscope or other optical instrumentation. This stand-alone illuminator features a 175W xenon-arc lamp, integrated power supply, cold mirror, and a housing that accommodates a filter wheel for versatile light filtering. It has been thoroughly tested and is guaranteed to be fully operational and in excellent working condition.

✅ Condition:Used, fully operational, and in good working order.
✅ Guarantee: Fully functional and ready for use.

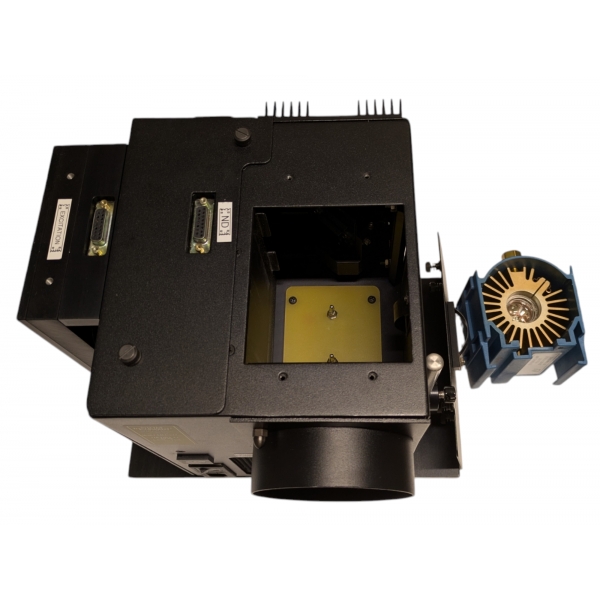

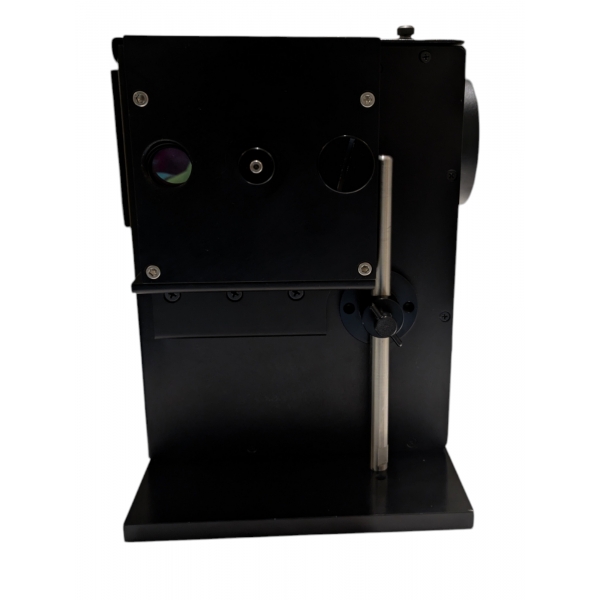

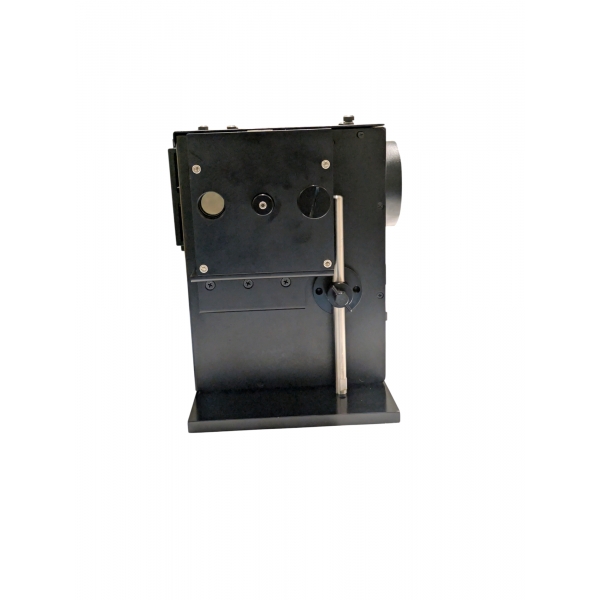

The Lambda LS is a stand-alone illuminator consisting of a xenon-arc lamp, lamp housing, cold mirror and power supply in a single enclosure. The Lambda LS is designed to be used with a liquid light guide which transmits remarkably flat, intense, illumination to the optical train of the user’s microscope or other instrumentation. The lamp’s cabinet accommodates a standard Sutter Instrument filter wheel that slides easily in and out of a slot in the light path. If desired, a second filterwheel can be mounted on the outside of the cabinet. When used with appropriate adapters, the light guide output is compatible with most common microscope systems.

Unlike the arc lamps used with most fluorescence microscopes, the 175W xenon bulb is pre-aligned using a parabolic mirror and does not require alignment, focusing or collimation. In the standard configuration, the Lambda LS bulb is capable of producing light output from 330nm to a cutoff of 650 nm determined by the cold mirror. An optional enhanced UV bulb produces output much lower into the UV (cut off near 200 nm). As with any UV generating light source, the optional bulb generates significant quantities of ozone and must be used in an adequately ventilated environment.

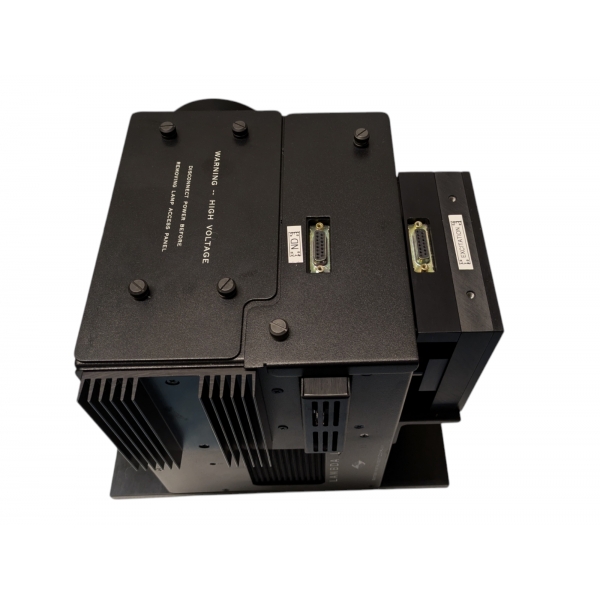

The Lambda LS utilizes a compact design, which places power supply, lamp house, arc lamp and cold mirror in a single enclosure. This system eliminates a common failure associated with standard arc lamp designs; when using a remote power supply aging may lead to a decreased ability to light the lamp due to loss of the insulating characteristics of the lengthy high-tension line. As with all our equipment, the power supply has been designed to minimize electrical noise that can be picked up by physiological recording equipment.

The liquid light guide can be coupled to the illumination port of most microscopes using an adapter which can be purchased separately. Please refer to the Microscope Adapters section for further information. Extended output ranges are possible with various cold mirror and light guide combinations. Phone Sutter to discuss your specific application requirements.

Key Features:

• High-Intensity Xenon Lamp: Provides light levels superior to standard microscope fluorescence lamps, with a pre-aligned 175W xenon bulb that eliminates common focusing issues.
• Broad Output Range: Standard configuration covers 330 nm to 650 nm (ozone-free), with an optional enhanced UV bulb providing output as low as 275 nm (produces ozone).
• Compact Design: Combines the power supply, lamp housing, and cold mirror into a single enclosure, simplifying setup and minimizing the risk of common failures found in remote power supply designs.
• Cold Mirror: Eliminates IR heating of downstream optical components, ensuring accurate and consistent illumination.
• Integrated Hour Meter: Easily track lamp life and plan for bulb replacements with the built-in hour meter.
• Modular and Flexible: Compatible with a liquid light guide (sold separately) for flexible direction of light output, and easily accommodates Sutter filter wheels and Smart Shutter systems within the lamp body.
• Microscope Compatibility: Can be coupled with most common microscope brands (Nikon, Zeiss, Leica, Olympus) using a liquid light guide and optional adapters (not included; please refer to the microscope adapter section for more details).

Applications:

• Fluorescence Microscopy: Provides a powerful, uniform light source for fluorescence imaging and microscopy.
• Optical Instrumentation: Ideal for use with a wide range of optical systems, enhancing imaging quality and reliability.
• Research & Laboratory Use: Perfect for advanced research applications in biological, chemical, and materials sciences where intense and consistent light is needed.

Technical Specifications:

• Lamp Type: 175W or 300W xenon, pre-aligned to produce collimated output

• Wavelength Changers & Filter wheels included

• Output Range:
• 330 nm to 650 nm (ozone-free)
• 275 nm to 650 nm (full spectrum, produces ozone)
• Radiant Output:
• 2.5 Watts (175W lamp)
• 4.5 Watts (300W lamp) (broadband, full beam)
• Lamp Life: 1000 hours (bulb warranted for 500 hours; expected life up to 1000 hours depending on application)
• Power Consumption: 175W or 300W
• Power Supply: 120/240 Volts, 50/60 Hz
• Dimensions: 10.5 in x 9.5 in x 10 in (26.7 cm x 24.1 cm x 25.4 cm)
• Weight: 10.5 lbs (4.8 kg)
• Electrical Requirements: 120/240V, 50/60 Hz power line

Included:

• Sutter Instrument Lambda LS Xenon Light Source

• Wavelength Changers & Filter wheels

• New Xenon Lamp
• Integrated Power Supply & Cold Mirror

The Sutter Instrument Lambda LS provides superior illumination for fluorescence microscopy and other optical applications. With its compact, modular design, and the ability to provide high-intensity, stable light output across a broad spectrum, this light source is ideal for a variety of research and laboratory environments. It offers a highly efficient solution with easy integration into existing systems.

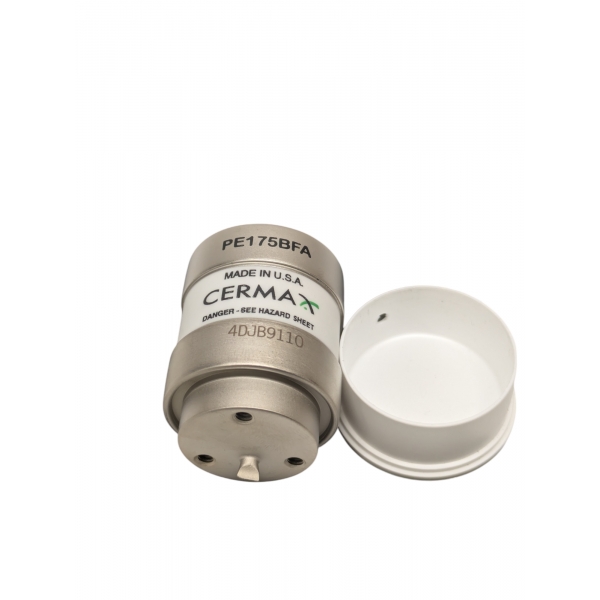

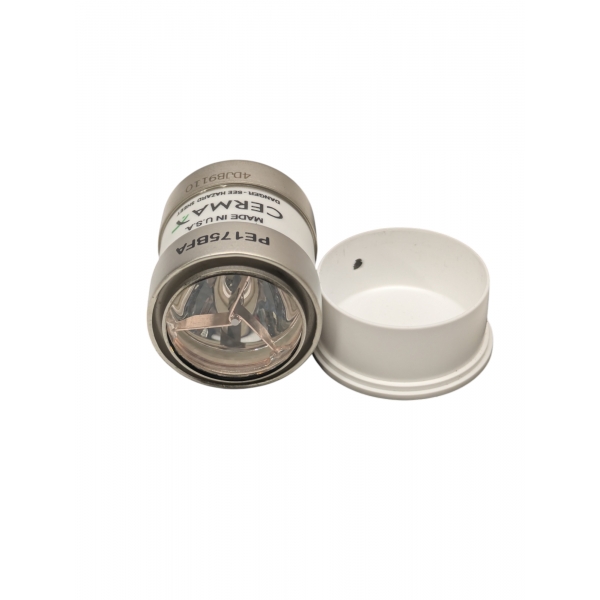

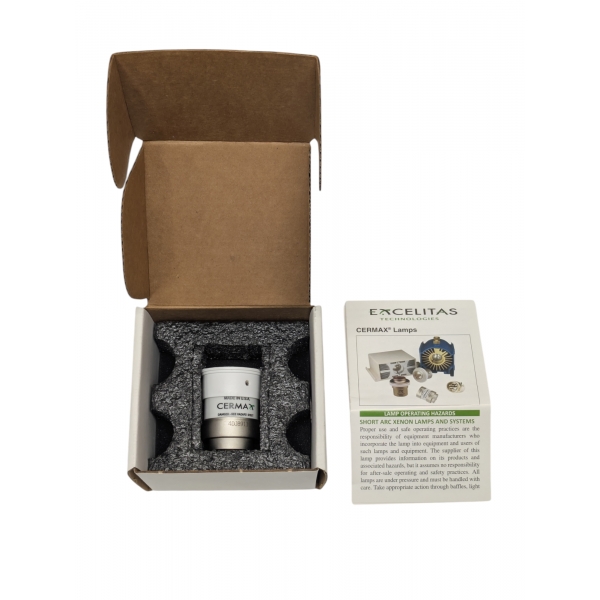

Product Name: CERMAX Xenon Lamp 175W
Model: PE175BFA
Condition: New

Description:
The CERMAX Xenon Lamp 175W (Model PE175BFA) is a high-performance light source designed for a variety of scientific, industrial, and medical applications. This lamp delivers bright, stable illumination with a nominal power of 175W, offering consistent lighting for demanding tasks such as spectroscopy and microscopy. With a typical lifetime of 1000 hours, it provides reliable, long-lasting performance.

Key Features:

• High-intensity illumination: 2200 Lumens
• Power Range: 175 Watts
• Lifetime: 1000 hours typical
• Broad spectral range: 5900° Kelvin color temperature
• Reflector Type: Parabolic
• Body Type: Ceramic
• Current - Nominal: 14 Amps (DC)
• Ignition Voltage: 23-35 kilovolts (system dependent)
• Operating Voltage - Nominal: 12.5 Volts (DC)
• Operating Voltage - Range: 11-14 Volts (DC)
• Radiant Output: 25 Watts
• UV Output (<390 nm): 1.2 Watts
• IR Output (>770 nm): 14 Watts
