Nanion Port-a-Patch Automated Patch Clamp System

Nanion Port-a-Patch Automated Patch Clamp System (Used, Fully Operational)

You are purchasing a used Nanion Port-a-Patch automated patch clamp system, which is in working condition. This system was removed from a functional electrophysiology lab, has been professionally cleaned, and tested to ensure full functionality. It is guaranteed to be in excellent working condition.

✅ Condition: Used, fully operational.
✅ Guarantee: Guaranteed to be fully functional.

Description:

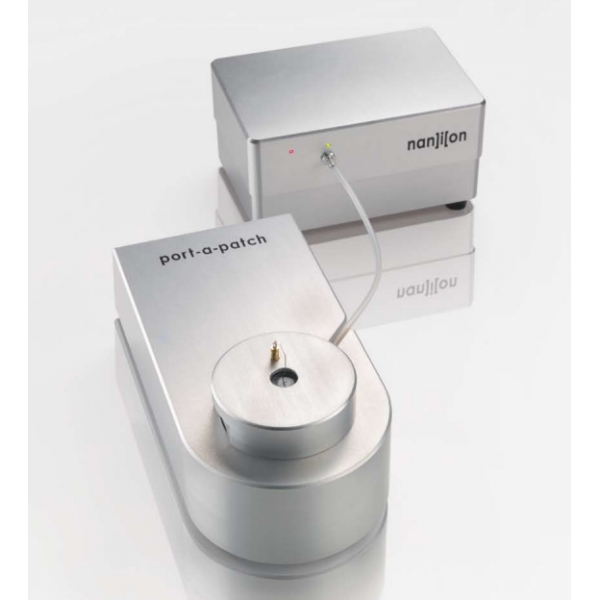

The Port-a-Patch by Nanion is a compact, turn-key automated patch clamp system designed for rapid and reliable electrophysiological measurements, even by non-experts. It supports a wide range of patch clamp configurations, including whole-cell, perforated patch, cell-attached, and bilayer recordings, with success rates of 70–90% and seal resistances greater than 1 GΩ.

Designed for high-throughput ion channel research, the system uses NPC-1 borosilicate glass chips with micron-sized apertures to facilitate automatic cell capture, sealing, and whole-cell configuration. Versatile and expandable, it supports external/internal perfusion, temperature control, and optional fluorescence imaging for comprehensive cell analysis.

Key Features:

• ✅ Easy to Use – Suitable for non-experts
• ✅ High Success Rate – 70–90% for stable whole-cell configurations
• ✅ High Seal Resistance – >1 GΩ
• ✅ Supports Multiple Cell Types – CHO, HEK, stem cells, primary cells
• ✅ Multiple Recording Modes – Whole-cell, perforated patch, bilayer, cell-attached
• ✅ Integrated Current Clamp – Standard
• ✅ Ultra-low Noise – Suitable for bilayer recordings
• ✅ Add-on Compatibility – Perfusion systems, temperature control, microscope slide for fluorescence
• ✅ Voltage & Ligand Gated Ion Channel Support

Technical Specifications:

• Recording Channels: 1
• Throughput: 20–50 data points per day
• Seal Resistance: >1 GΩ
• Series Resistance: <10 MΩ
• Chip Resistance: 2 – 3.5 MΩ (customizable)
• Whole-cell Resistance: >1 GΩ
• Liquid Consumption: ~30 μL/compound
• Whole-cell Stability: ~20–30 minutes
• Perfusion Time Constant: ~100–150 ms
• Internal Perfusion Time Constant: ~5 s
• Temperature Control Range: 10 – 50°C
• Minimum Exposure Time: 200 ms
• Unlimited Solution Additions: Yes
• Recording Types: Whole-cell, perforated patch, cell-attached, bilayer
• Supported Cells: Cell lines, stem cells, primary cells (e.g. RBCs, immune, epithelial, cancer, muscle, etc.)

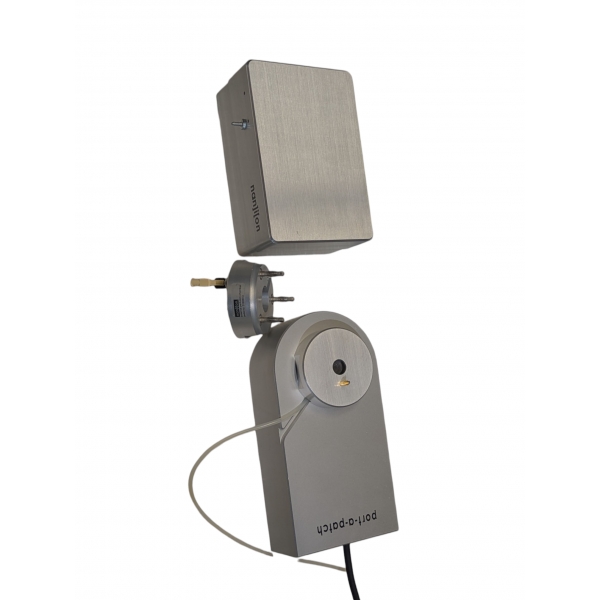

Included in the Kit:

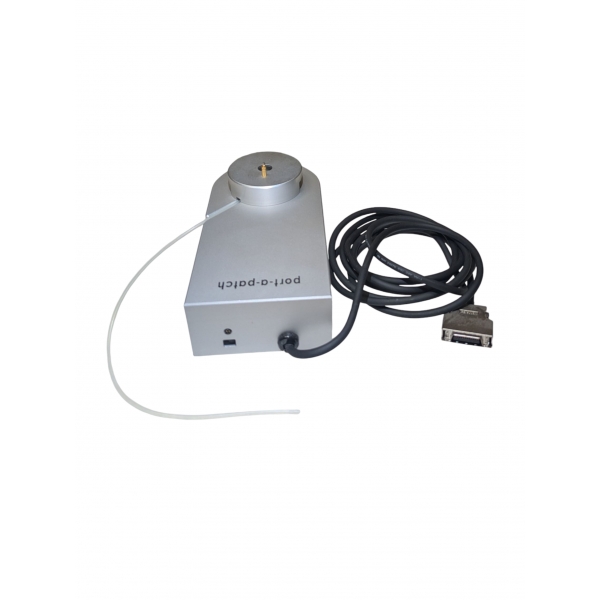

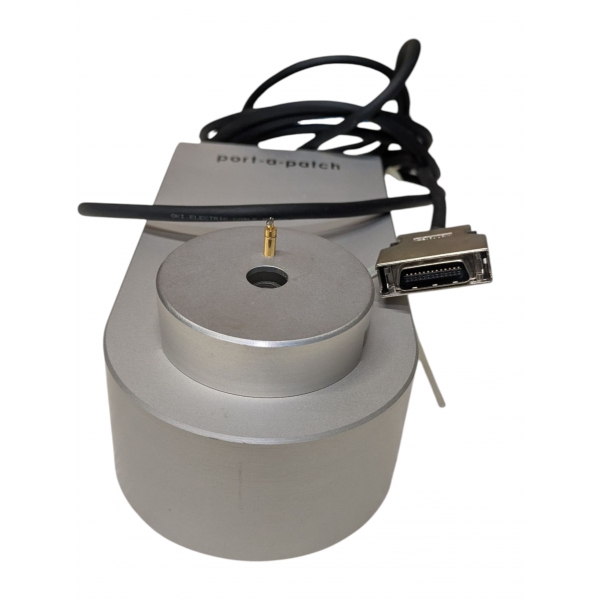

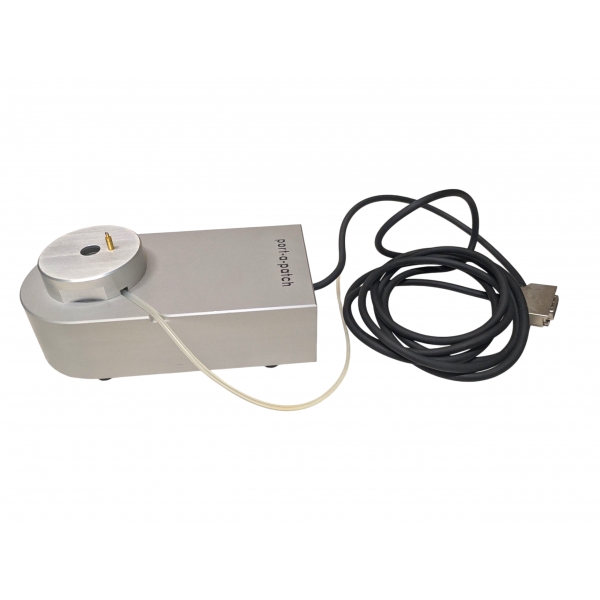

• Nanion Port-a-Patch Recording Station with Faraday top

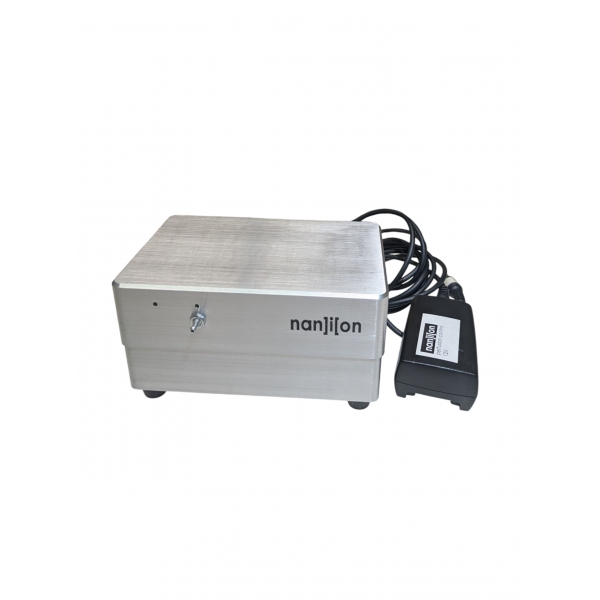

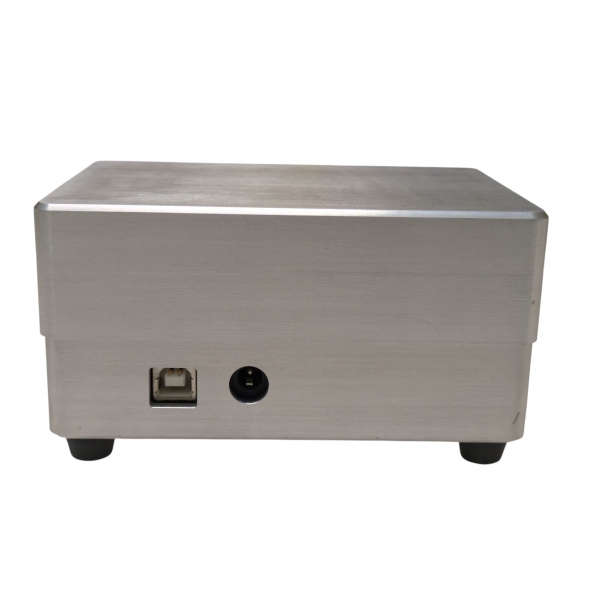

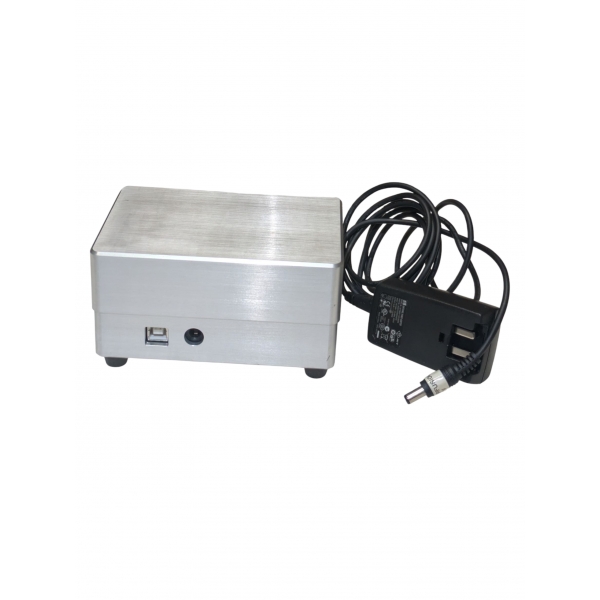

• Port-a-Patch Suction Controller (USB-controlled)

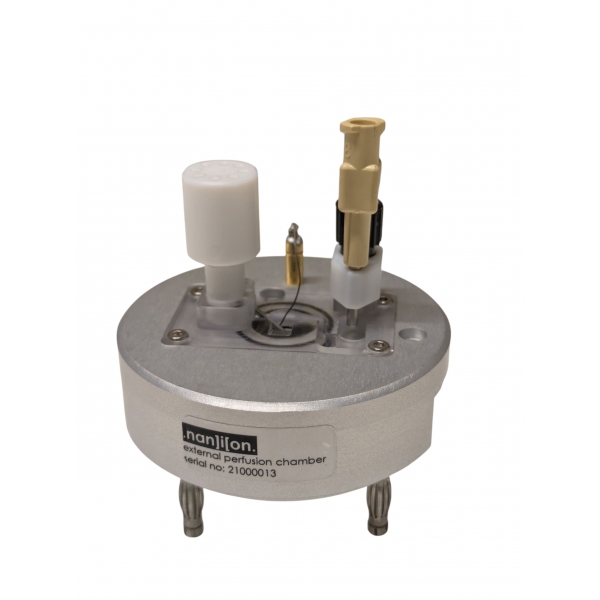

• External Perfusion chamber

Optional Add-Ons (Not Included):

• Internal Perfusion System
• Temperature Control Unit
• Fluorescence Microscope Slide for optical stimulation and imaging

Guaranteed to be Fully Operational:

This Nanion Port-a-Patch  system has been professionally serviced, tested, and verified for stable electrophysiological recordings across multiple cell types. It is ideal for ion channel screening, drug discovery, and academic research.

Perfect for:

• Pharmaceutical Ion Channel Screening
• Electrophysiology Teaching Labs
• Neuroscience & Cardiac Electrophysiology Research
• Biophysics & Cellular Physiology Labs
• Patch Clamp Training Programs
