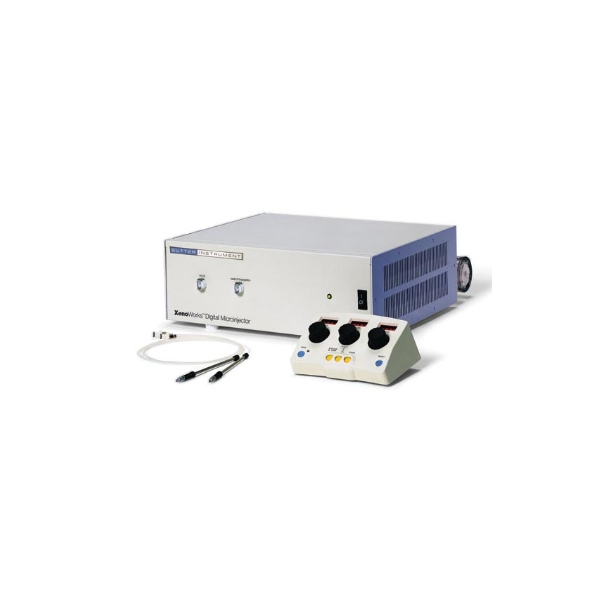

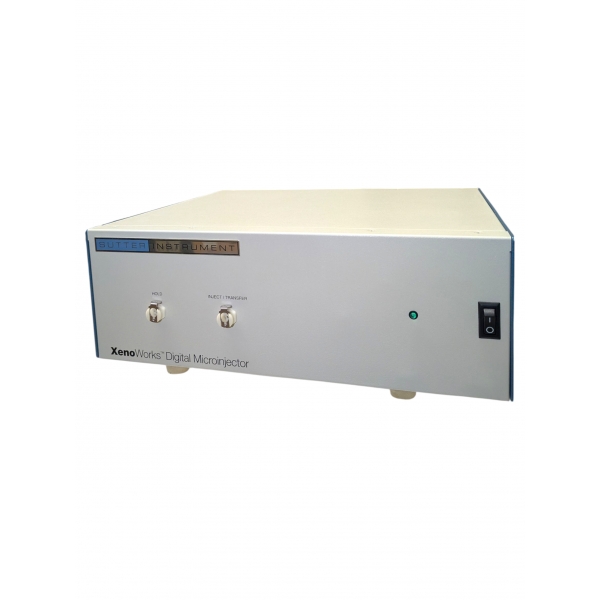

XenoWorks Digital Microinjector – Model: BRE110/E (Sutter Instrument)
You are purchasing a used XenoWorks Digital Microinjector, Model BRE110/E, from Sutter Instrument. This unit was removed from a fully operational laboratory, professionally cleaned, inspected, and tested by a qualified technician. It is guaranteed to be in excellent working condition and ready for immediate use.
✅ Condition: Used, fully operational, professionally cleaned.
✅ Model: BRE110/E
✅ Guarantee: Guaranteed to be fully functional.
Description:
The XenoWorks Digital Microinjector, Model BRE110/E, is a precision-engineered system designed for demanding microinjection tasks in transgenic and developmental biology. Tailored for use in mammalian oocyte and embryo applications, it offers precise, real-time control of injection pressure and vacuum holding—ideal for DNA pronuclear injection, embryonic stem cell transfer, ICSI, and related procedures.
With two fully independent pressure channels, the BRE110/E allows separate, simultaneous control of hold (vacuum) and inject/transfer (positive/negative pressure) functions. The system supports both constant flow and pulse injection modes, making it suitable for a broad range of research applications. Settings are controlled via a remote user interface, minimizing workspace clutter and eliminating vibrations near the microscope, thanks to the separate compressor module.
Key Features:
- Model: BRE110/E
- Dual Independent Channels: For holding (vacuum) and injection/transfer (pressure)
- Injection Modes: Continuous (manual) and timed Pulse (0–10 s, adjustable in 0.1 s steps)
- Functions: Hold, Transfer, Inject, Clear
- Built-in Compressor: Quiet and vibration-isolated, with external placement capability

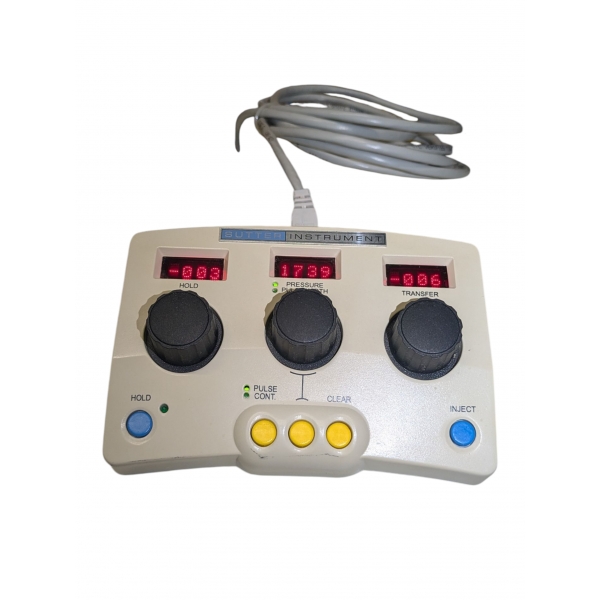

- Control Interface: Rotary optical encoders, tactile buttons, and 3× 7-segment LED display
- Micropipette Support: Accepts 1 mm OD capillary glass, 4 mm holder diameter

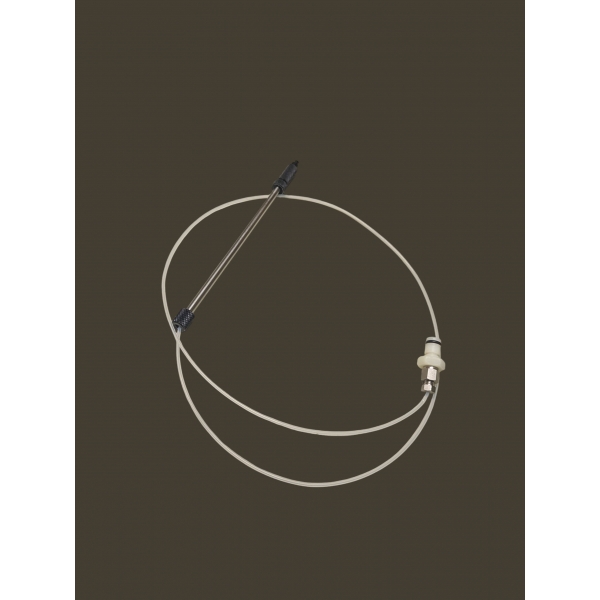

- Tubing Included: 2-meter PTFE microinjection tubing
Specifications:
|
Parameter
|
Specification
|
|
Hold Pressure Range
|
-350 to +350 hPa (1 hPa increments)
|
|
Transfer Pressure Range
|
-175 to +175 hPa (1 hPa increments)
|
|
Inject Pressure Range
|
0 to 5600 hPa (7 hPa increments)
|
|
Inject Time Range
|
0 to 10 seconds (0.1 s increments)
|
|
Clear Function
|
Ramps up to 5600 hPa at 1000 hPa/s
|
|
Compressor Voltage
|
100–120 V, 60 Hz or 220–240 V, 50 Hz
|
|
Micropipette Holder
|
4 mm diameter (accepts 1 mm OD glass capillaries)
|
|
Display
|
3 × 7-segment LED
|
|
User Interface Module
|
164 × 123 × 70 mm, 42 g
|
|
Compressor Module
|
407 × 440 × 150 mm, 1504 g
|

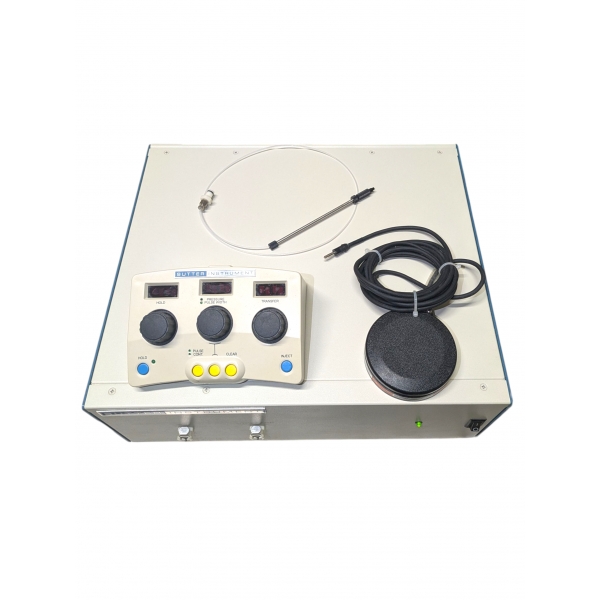

Included:
- Xeno Works Digital Microinjector (Model BRE110/E)
- Power Cable

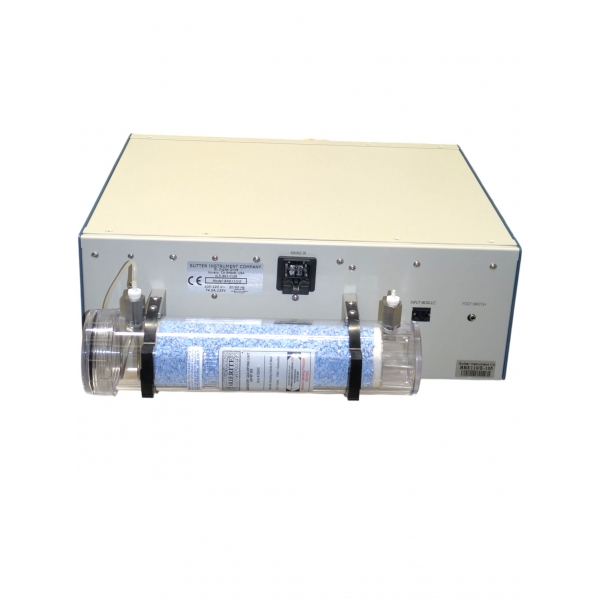

- PTFE Tubing(gas drying unit) max pressure;100 PSIG
- Footswitch
- Hand controller
Applications:
- Pronuclear microinjection of DNA into mouse or mammalian zygotes
- Embryonic stem cell injection into blastocysts
- Somatic cell nuclear transfer (SCNT)
- Intracytoplasmic sperm injection (ICSI)
- Piezo-assisted sperm-mediated transgenesis or nuclear transfer
- Adherent and suspension cell microinjection
- Microinjection in small model organisms such as:
- Drosophila melanogaster
- C. elegans
- Zebrafish
Additional Information:
- Precise Rotary Control: Fine adjustment of pressure and timing
- Low-Vibration Operation: Remote compressor placement protects sensitive microscope setups
- Fully Integrated Interface: All injection, hold, and transfer controls are accessible via compact remote module
- Proven Reliability: Used in leading transgenic research and developmental biology labs worldwide
This XenoWorks Digital Microinjector (Model BRE110/E) has been carefully tested to meet performance standards and is fully functional. It's the ideal choice for laboratories performing precision embryo manipulation and microinjection.
Perfect for:
✔ Transgenic research and gene editing labs
✔ Embryology, IVF, and reproductive biology research
✔ Developmental biology and model organism microinjection
✔ Precision microinjection systems in academic or commercial settings
