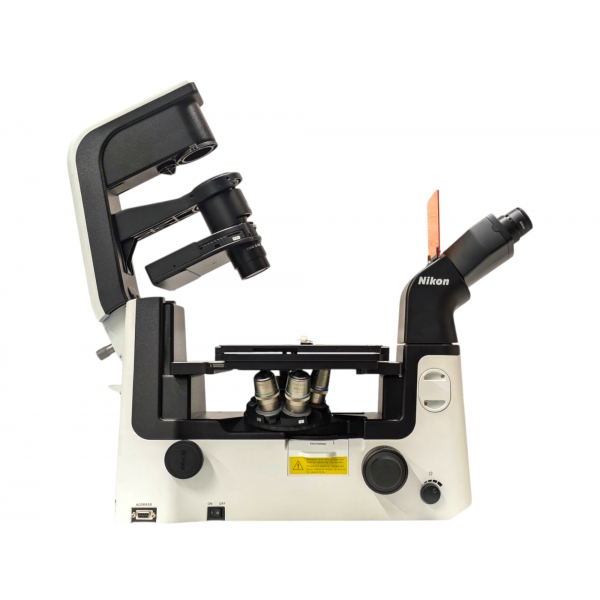

NIKON INVERTED MICROSCOPE ECLIPSE model Ts2R-FL/Ts2R

Nikon Inverted Microscope Eclipse Ts2R-FL/Ts2R (Used, Tested, Fully Operational)

The NIKON INVERTED MICROSCOPE ECLIPSE Ts2R-FL/Ts2R sets a new standard for the inverted research microscope, providing a wide range of observation methods and applications in a compact body that can easily fit in limited laboratory spaces while maintaining excellent operability. New ergonomic stage design for improved workflow, The Ts2R can be configured with an optional rectangular mechanical stage, Versatile observation with LED illuminator the high-intensity LED light source enables to perform a wide variety of observation methods which offers Epi-fluorescence observation, provides four fluorescence channels, with 8 different wavelengths to choose from, This Microscope was removed from working laboratory, it is cleaned well and been tested by a professional technician, it comes as with stage ring holder,chamber and original power cable, guaranteed to be fully operational.

✅ Condition: Used, fully operational, and in excellent working order.
✅ Guarantee: Guaranteed to be fully functional and ready for use.

Description:

The Nikon Eclipse Ts2R-FL/Ts2R inverted microscope is a top-tier model designed to meet the needs of various disciplines such as neurology, pathology, immunology, hematology, internal medicine, ophthalmology, and biological research. It is equipped with a Nikon CF160 Infinity corrected optical system and features magnifications of 4X, 10X, 20X, and 40X. The microscope’s inverted stage accommodates large culture vessels and slides, making it ideal for biological and clinical applications. It also supports both diascopic LED fluorescence and episcopic field illumination, providing flexibility for different observation methods.

The modular design allows for easy upgrades and the addition of accessories, enhancing its versatility and adaptability in a laboratory setting.

Key Features:

• Optical System: Nikon CFI60 Infinity Optical System for clear, high-resolution images.

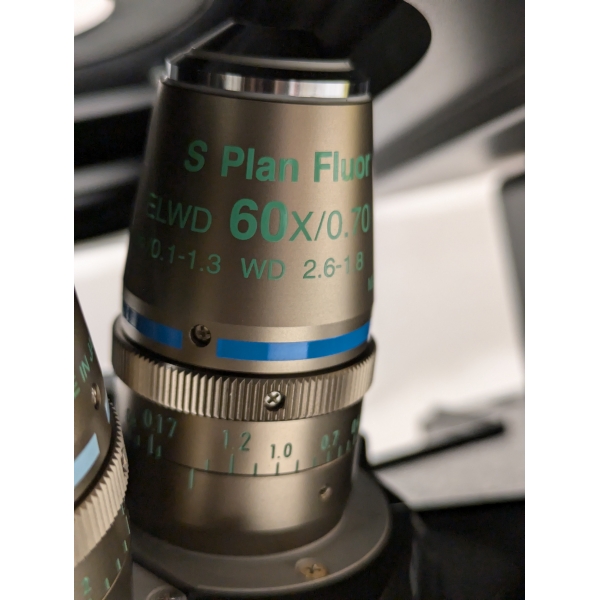

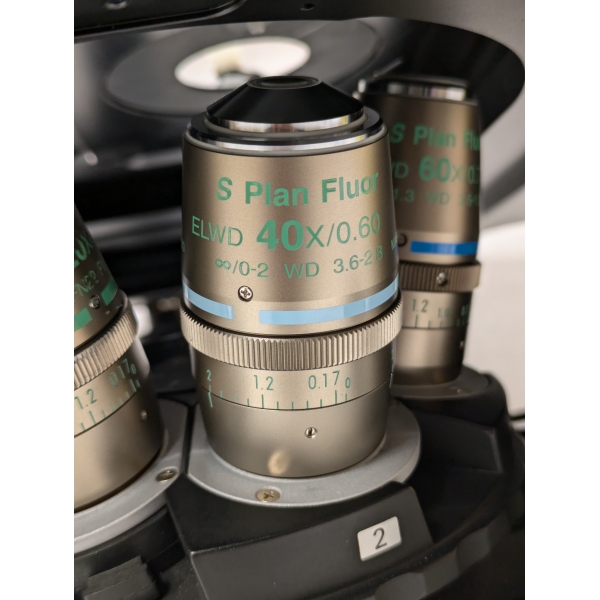

• Magnification Range: 4X, 10X, 20X, 40X, with a variety of objective lenses including S Plan fluor ELWD (20X/0.45, 40X/0.6, 60X/0.7).
• Eyepiece: 10x/22, with a field of view of 22mm.
• Condenser Lens: LWD 0.52 for enhanced image clarity.
• Nosepiece: Sextuple nosepiece for easy objective lens changes.
• Phase Contrast: Includes LWD α ph1 and LWD α ph2 for brightfield and phase contrast observations.
• Illumination System:
• Diascopic LED Fluorescence and Epi-fluorescence illumination for a wide range of observation methods.
• High-intensity LED light source for improved brightness and image quality.
• Switchable between diascopic and epi-fluorescence illumination modes.

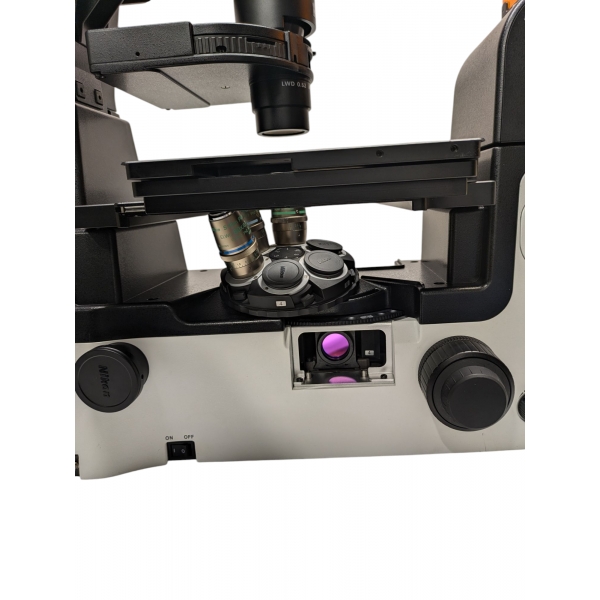

• Filter Cubes: Includes three filter cubes with options for additional cubes:
• No2: 96221 AT-DAPI (C186152)
• No3: 96226 AT-EGFP/F (C186540)

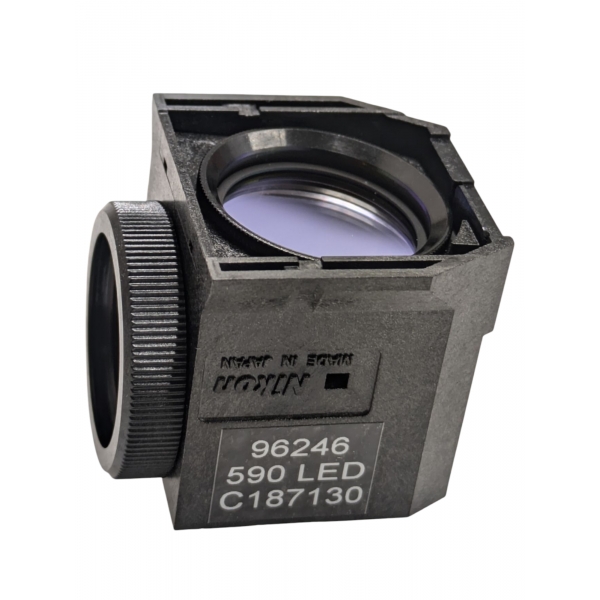

• No4: 96246590 LED (C187130)
• Ergonomics: The new ergonomic stage design provides improved workflow and comfort during use.
• Modular Design: Allows for easy upgrades and accessory installation.
• Camera Compatibility: Compatible with digital cameras and image analysis software for advanced imaging and analysis.

Additional Information:

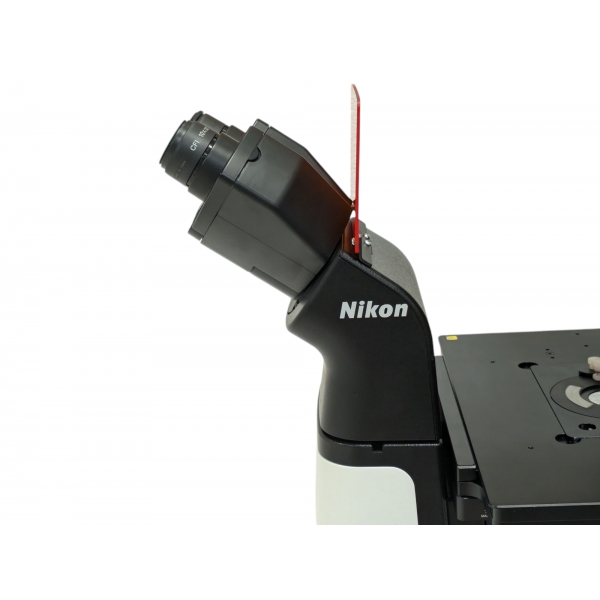

• Binocular Tube: Inclination of 35 degrees for comfortable viewing.
• Body and Stage:

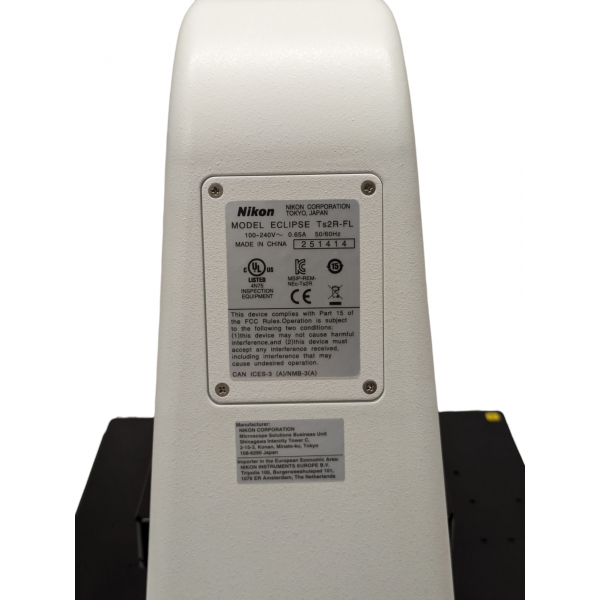

• Body Model: Nikon TS2R-FL

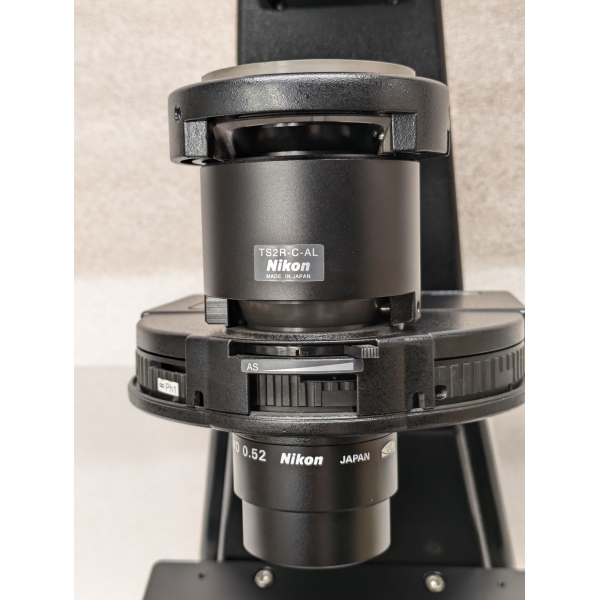

• Condenser Model: Nikon TC-C-TC with objective body Nikon TS2R-C-AL

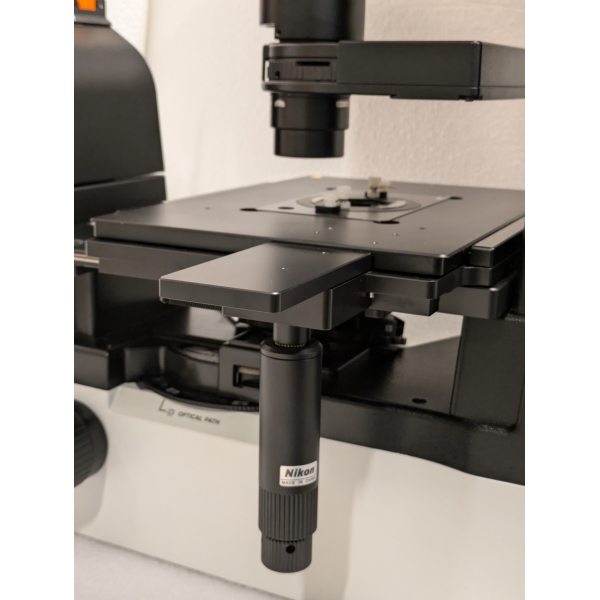

• Microscope Stage: TC-S-SR with TC-S-C stage clips and SA-20MW-AL ring holder (32mm stage ring chamber).
• Camera Port: Camera port included without an adapter.

Included Accessories:

• Power Cable
• Chamber and inserts for stage setup

Condition Details:

This microscope has been removed from a fully operational laboratory, thoroughly cleaned, and professionally tested to ensure it meets the highest performance standards. It is guaranteed to be fully operational and is ready for immediate use in laboratory or clinical settings.

Perfect for:

• Laboratory research in neurology, pathology, immunology, hematology, and more.
• Clinical and biological laboratories requiring high-quality, precise imaging and flexibility in observations.
• Researchers and medical professionals in need of a versatile and durable microscope for everyday use.

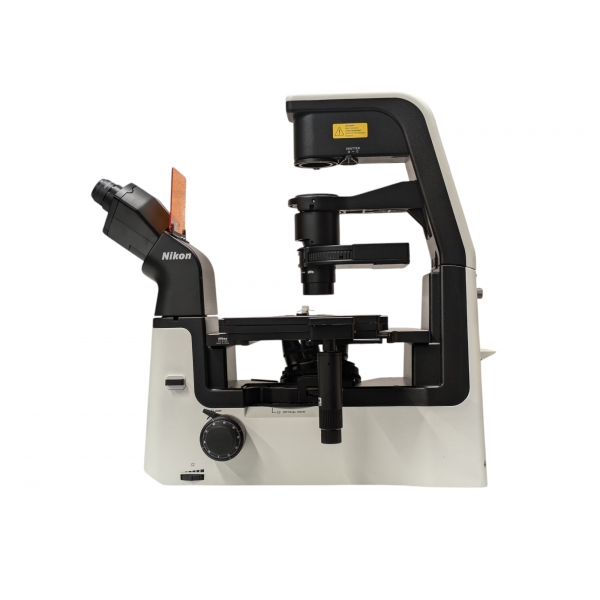

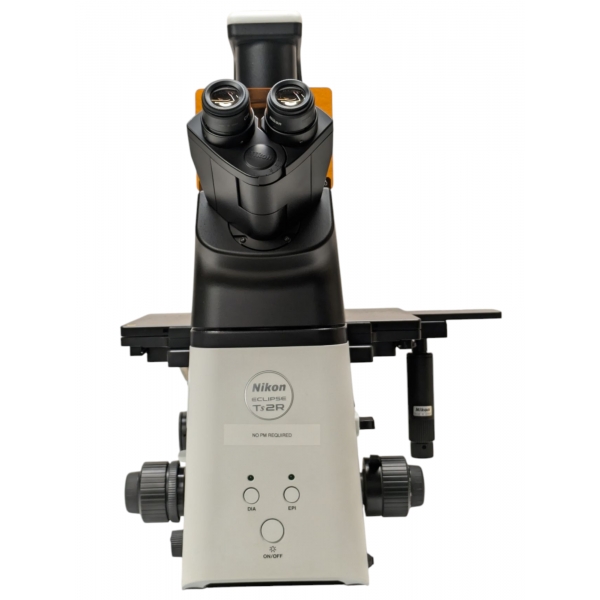

Nikon Inverted Eclipse microscope Ts2R main body model Ts2R-FL

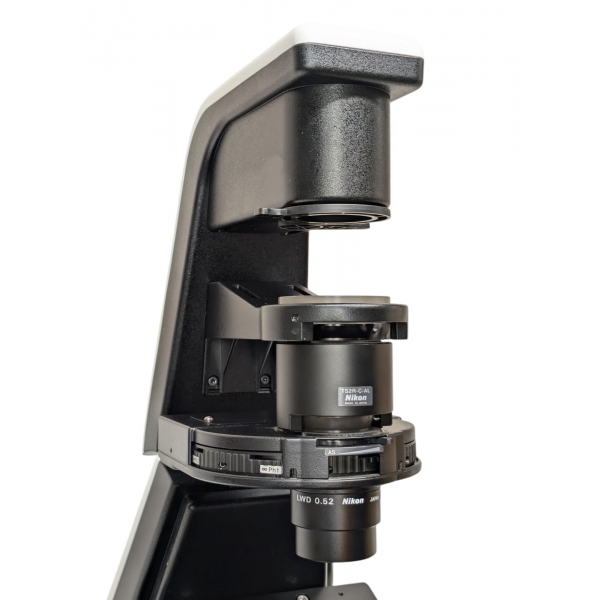

• Contain body condenser model Nikon TC-C-TC with objective body model Nikon TS2R-C-AL holding objective lens of LWD 0.52.

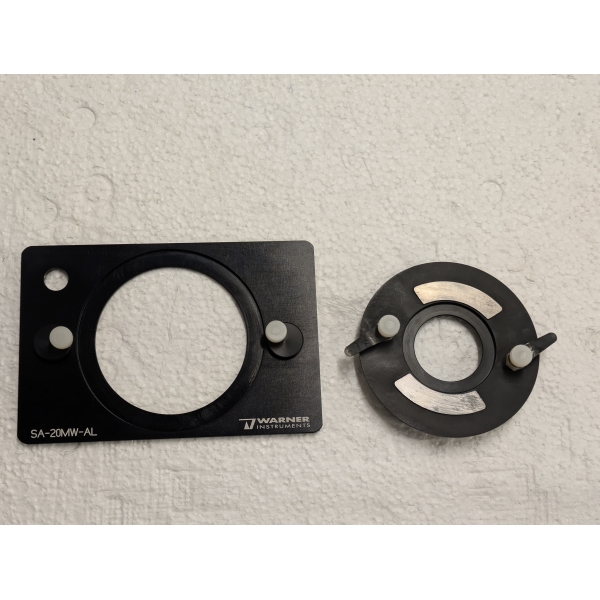

•  Microscope stage TC-S-SR with TC-S-C stage clips attached to a SA-20MW-AL ring holder set with 32mm stage ring chamber.

The microscope comes with three filter cubes

• No2: 96221 AT -DAPI C186152
• No3: 96226 AT-EGFP/F C186540
• No4: 96246590 LED C187130
