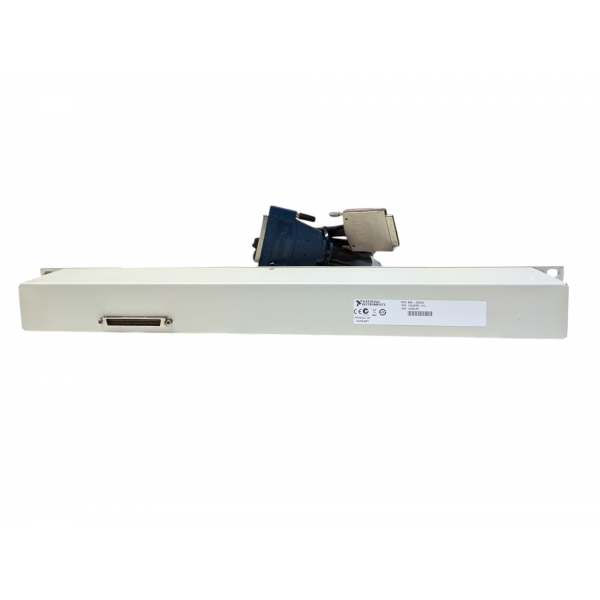

NATIONAL INSTRUMENTS BNC-2090A Rack-Mounted BNC Terminal Block

NATIONAL INSTRUMENTS BNC-2090A Rack-Mounted BNC Terminal Block – 68-Pin DAQ Interface Module

You are purchasing a used National Instruments BNC-2090A Rack-Mounted BNC Terminal Block, which is in great condition. This unit was removed from a fully functional test environment, professionally cleaned. It is guaranteed to be in good working condition.

✅ Condition: Used, excellent condition, professionally cleaned.
✅ Guarantee: Guaranteed to be fully functional.

Description:

National Instruments BNC-2090A is a shielded, rack-mountable terminal block designed to simplify connections between your NI data acquisition (DAQ) hardware and your signal sources. With 22 BNC connectors and 28 spring terminals, this terminal block supports analog, digital, and timing signals, offering flexible interfacing with various I/O configurations. The unit is compatible with any 68-pin DAQ device from the M Series, S Series, E Series, or B Series.

This versatile adapter chassis provides silk-screened component areas for passive signal conditioning, enabling users to implement custom filtering or voltage dividers directly on the device. It supports multiple input configurations including differential (DIFF), non-referenced single-ended (NRSE), and referenced single-ended (RSE) modes, making it ideal for precision measurement setups in laboratories, field diagnostics, and production test environments.

Key Features:

• Rack-Mountable and Shielded: Ideal for low-noise lab and test environments
• 22 BNC Connectors:
 – 18 for analog signals
 – 2 for digital signals
 – 2 user-defined channels
• 28 Spring Terminal Blocks: For digital and timing signal access
• Supports Passive Signal Conditioning: Build filters or voltage dividers with silk-screened component locations
• Multi-Mode Configuration: Compatible with DIFF, NRSE, and RSE modes
• DAQ Compatibility: Works with all 68-pin M Series, S Series, E Series, and B Series NI DAQ boards
• High-Voltage Signal Handling: Allows external attenuators or voltage dividers for extended input range (e.g., ±20V signals with 2:1 divider)
• Integrated Design: Includes two 68-pin male connectors for direct DAQ interfacing
• Durable Build: Constructed with robust plastic and aluminum housing

Specifications:

• Model: BNC-2090A
• Part Number: 194288B-01L
• Product Type: BNC Terminal Block
• Connector Types:
 – 22 BNC (Analog, Digital, Timing)
 – 28 Spring Terminal Blocks
• Dimensions:
 – Length: 19.0 in
 – Width: 7.4 in
 – Height: 1.7 in
• Material: Aluminum/Plastic
• Operating Temperature: 0° to 70°C
• Storage Temperature: -55° to 125°C
• Relative Humidity: 5% to 90%, non-condensing
• Compatibility: 68-pin M, S, E, and B Series DAQ devices
• Mounting: 19” Rack-Mountable

Applications:

• Laboratory DAQ Systems: Simplifies signal routing and configuration
• Test and Measurement Setups: Ideal for analog and digital signal interfacing
• Field Diagnostics: Reliable signal conditioning for mobile or remote use
• Production and Automation Testing: Streamlined connection to high-channel-count DAQ systems

Included in the Purchase:

• NI BNC-2090A Terminal Block
• 68-position connector cable
