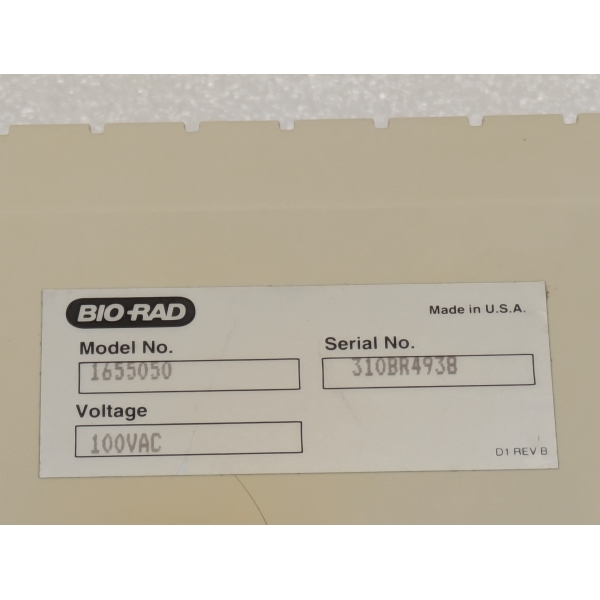

BIORAD POWER SUPPLY MODEL:1655050 POWERPAC 300

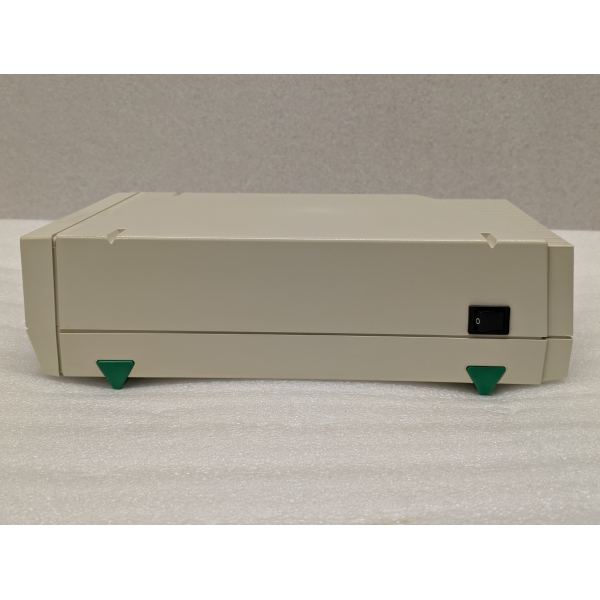

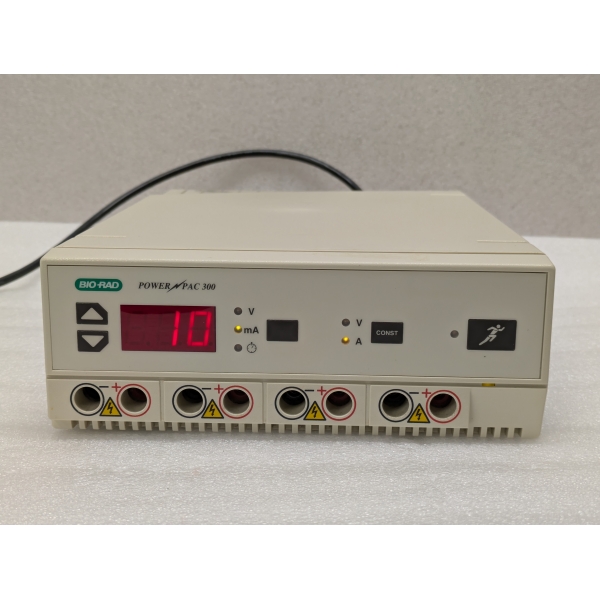

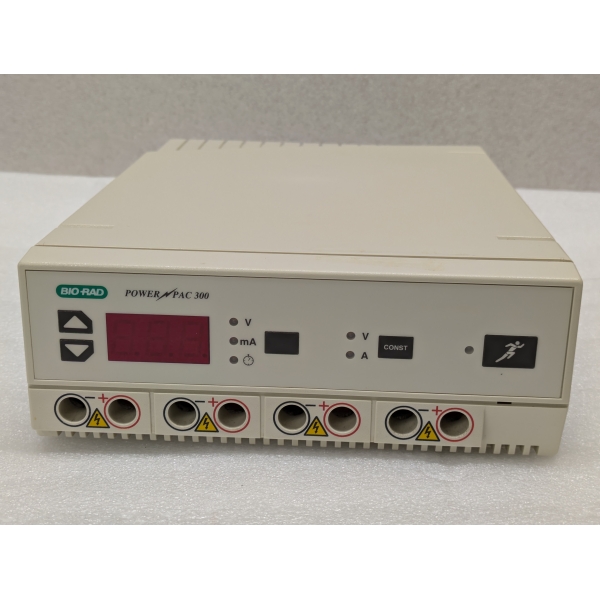

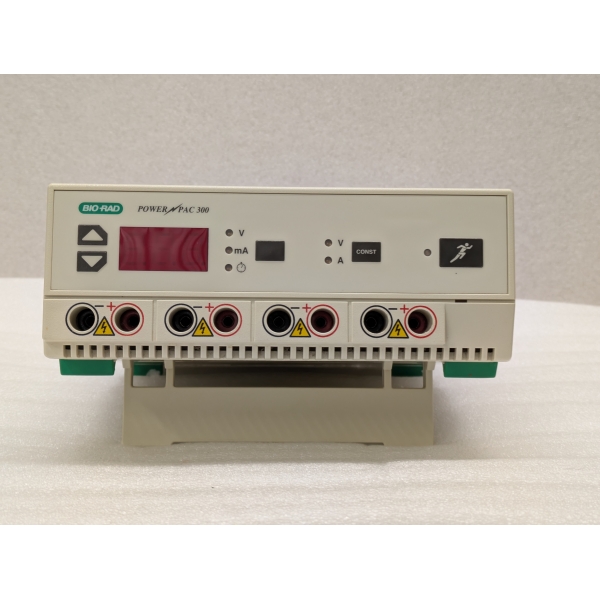

Bio-Rad PowerPac 300 Power Supply (Used, Fully Operational)

You are purchasing a used Bio-Rad PowerPac 300 Power Supply, removed from a working laboratory, thoroughly cleaned, and tested for operational reliability. It is guaranteed to be fully functional and ready for use. If you have any questions or require additional information, please feel free to send a message.

✅ Condition: Used, fully operational, professionally cleaned, and tested.
✅ Guarantee: Guaranteed to be fully functional and ready for use.

Description:

The Bio-Rad PowerPac 300 is a highly reliable and versatile power supply, designed to provide constant voltage or constant current for electrophoresis and blotting instruments. Ideal for laboratory environments, this power supply ensures stable and adjustable power to support various electrophoresis applications, including Western blotting, gel electrophoresis, and DNA/RNA analysis.

This used unit has been thoroughly tested to ensure it operates at full capacity and is in good working condition. It offers adjustable outputs for voltage, current, and time, making it flexible for various laboratory applications. Whether you're working with electrophoresis cells or need reliable power for other experiments, the PowerPac 300 provides the performance and stability you need.

Key Features:

• Constant Voltage or Constant Current Operation: Automatically switches between constant voltage and constant current modes based on experimental needs.
• Adjustable Outputs:
• Voltage: 10 to 300 V (adjustable in 1 V increments)
• Current: 4 to 400 mA (adjustable in 1 mA increments)
• Power: Maximum 75 W
• Timer Control: Adjustable from 1 to 999 minutes for experiment duration.
• Automatic Crossover: Automatically switches modes between constant voltage and current based on load.
• Automatic Power Failure Recovery: Can resume the experiment after a power failure when enabled.
• Four Electrophoresis Cells: Up to four cells can be connected in parallel for multiple experiments.
• Noise Reduction: Operates at a low noise level of 27 dBA, ensuring a quieter lab environment.
• Stackable Case Design: Compact and stackable for easy storage and space-saving.
• Viewing Angle Adjustment: Adjustable viewing angle to enhance user experience.

Specifications:

• Input Power (100/120 V model): 90 - 132 VAC, 47 Hz - 63 Hz
• Fuses: 2.5 A, 125 V, 5mm x 20mm, Type T (for 100/120 V units)
• Output Power:
• Voltage: Adjustable from 10 V to 300 V in 1 V increments
• Current: Adjustable from 4 mA to 400 mA in 1 mA increments
• Maximum Power Output: 75 W
• Timer Control: Adjustable from 1 to 999 minutes
• Resolution Ripple: ±1% @ 300 V and 75 W
• Line Regulation: ±1% @ 300 V and 75 W from 90 - 132 V AC or 198 - 264 V AC
• Load Regulation: ±1% @ 300 V for a 50% change in output load
• Drift: ±1% after 30 min warm-up at 300 V and 75 W
• Noise: 27 dBA
• Readout Stability:
• Voltage: ±1 V
• Current: ±1 mA
• Terminals: 4-pair recessed female banana jacks (floating in parallel)
• Power (Max): 75 W
• Viewing Angle Adjustment: Enhances ease of use in different lab setups

Included in the Kit:

• Bio-Rad PowerPac 300 Power Supply
• Power Cable
• User Manual

Perfect for:

• Electrophoresis Applications: Ideal for Western blotting, gel electrophoresis, and DNA/RNA analysis.
• Laboratory Research: Provides reliable, adjustable power for a wide variety of experiments.
• Blotting & DNA/RNA Work: Ensures stable power for sensitive applications that require precision and control.

The Bio-Rad PowerPac 300 Power Supply is a reliable and efficient tool for laboratory applications requiring constant voltage or constant current. With adjustable settings, multiple cell connections, and low noise operation, this power supply is perfect for electrophoresis and other laboratory needs.
