VWR High-Purity Two-Stage Gas Regulator CAT NO:55850-476, CGA 580 Inlet, Max inlet 3,000 psig, 125psi

 VWR Gas Regulator 55850-476: Two Stage, CGA 580 Inlet, Max inlet 3,000 psig, 125psi

(Used, Tested, Fully Operational)

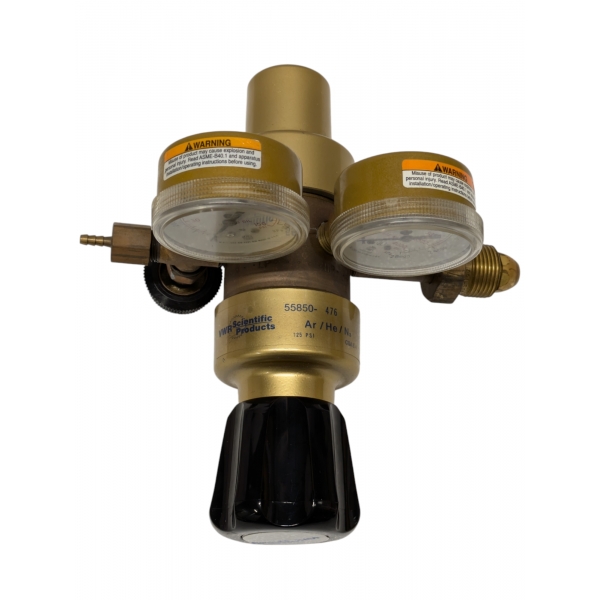

You are purchasing one used VWR High-Purity Two-Stage Gas Regulator 55850-476. This unit is in excellent working condition, having been professionally cleaned and thoroughly tested by a qualified technician to ensure full functionality. Guaranteed to be fully operational and ready for use.

✅ Condition: Used, fully operational, and in excellent working order.
✅ Guarantee: Fully functional and ready for use.

Perfect for applications requiring high-purity gas regulation and precise pressure control.

Description:

The VWR High-Purity Two-Stage Gas Regulator is an ideal solution for laboratory applications requiring stable and reliable gas pressure control. It features a two-stage design, ensuring constant outlet pressure for precise regulation of gases such as Argon, Helium, and Nitrogen. The regulator is designed with a brass barstock body and stainless-steel diaphragm to prevent contamination, making it perfect for high-purity applications. It is also equipped with a one-piece PTFE encapsulated seat design with a sintered filter for added safety.

This high-performance regulator is suitable for use in research sample systems, process analyzers, gas chromatography, laser gas systems, and more. Its robust construction ensures durability and reliability even under high-pressure conditions.

The two-stage design provides constant outlet pressure regardless of change in cylinder pressure. A stainless-steel diaphragm eliminates contamination from diffusion or outgassing. A one-piece PTFE encapsulated seat design includes a sintered filter to protect the seat from particulate contamination. The 1x10-9cc/sec. inboard helium leak rate maintains gas purity levels. Front panel mountable.

Key Features:

• Two-Stage Design: Provides constant outlet pressure, ensuring stable performance.
• High-Purity Applications: Ideal for research, process analyzers, and emission monitoring systems.
• Stainless Steel Diaphragm: Prevents contamination and maintains gas purity.
• PTFE Encapsulated Seat: Features a one-piece design with sintered filter for added protection.

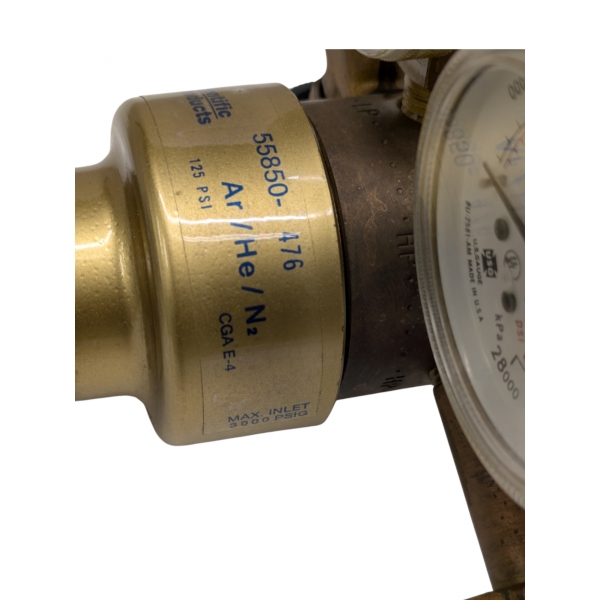

• Max Inlet Pressure: 3,000 psig for handling high-pressure gas sources.
• Outlet Pressure Range: 200 psig to 3,000 psig.
• Compatible with Gas Types: Argon, Helium, and Nitrogen.
• Mounting Type: Cylinder
• T-Handle Control: For easy adjustment of gas flow.
• External Adjustable Relief Valves: On F and G range models.

Specifications:

• Catalog Number: 55850-476
• Regulator Type: Two-Stage

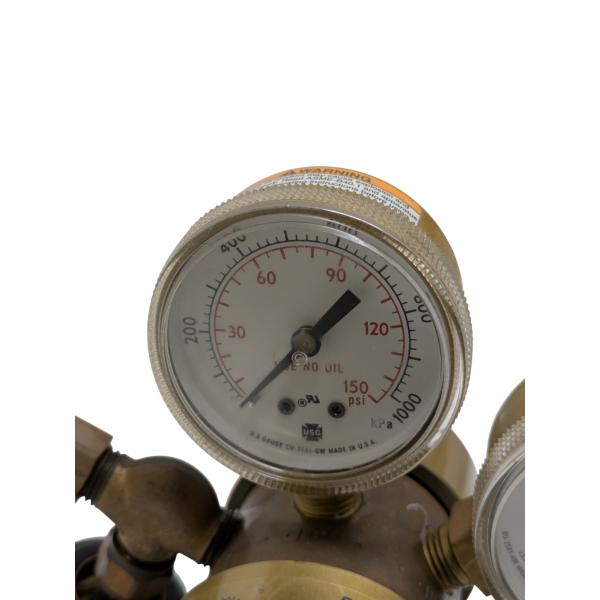

• Gauge1: 0-150 psi (0-1000Kpa)

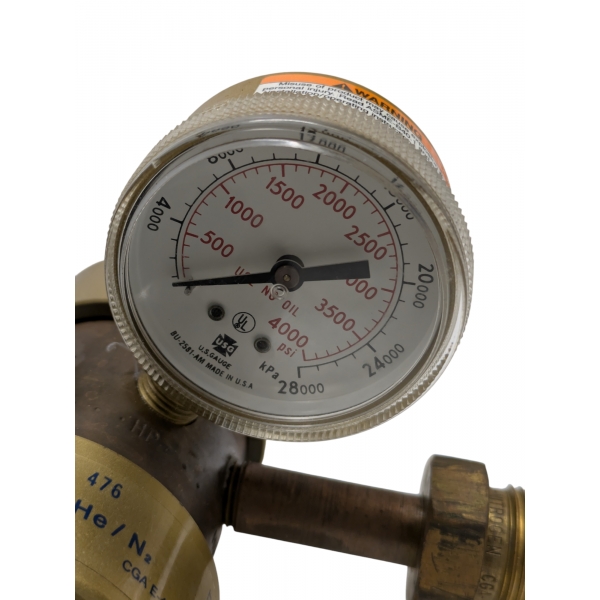

• Gauge 2:100-4000psi (1000-28000Kpa)
• Gas Type Compatibility: Argon, Helium, Nitrogen
• Inlet Connection: CGA 580 Male (0.965"-14)
• Inlet Pressure (Maximum): 3,000 psig
• Outlet Pressure: 200 to 3,000 psig
• Outlet Connection: 1/4 in Swagelok Female
• Body Material: Brass
• Diaphragm Material: 316L Stainless Steel
• Control Type: knob
• Gauge Diameter: 2-1/2 in
• Flow Coefficient: 0.1147
• Maximum Gauge Outlet Pressure: 3,000 psig
• Overall Dimensions (L x W x H): 6.25 in x 6 in x 6.5 in
• Application: High Pressure, Gas Regulation

Applications:

• Research Sample Systems: Ideal for gas chromatography and emission monitoring.
• Gas Control: Perfect for controlling gas pressure in laboratory environments.
• Process Analyzers: Suitable for use in various industrial process analyzers.
• High-Purity Systems: Ensures purity in sensitive gas applications, like laser gas systems.
• Pressure Vessel Testing: Great for pressure vessel and dead-end testing.

Condition Details:

• Used and Tested: This unit has been removed from a fully operational laboratory, professionally cleaned, and tested by qualified technicians.
• Fully Operational: Guaranteed to be fully functional and ready for use in laboratory settings.

Included:

• VWR High-Purity Two-Stage Gas Regulator
