CED Power 1401 mkII Data Acquisition System

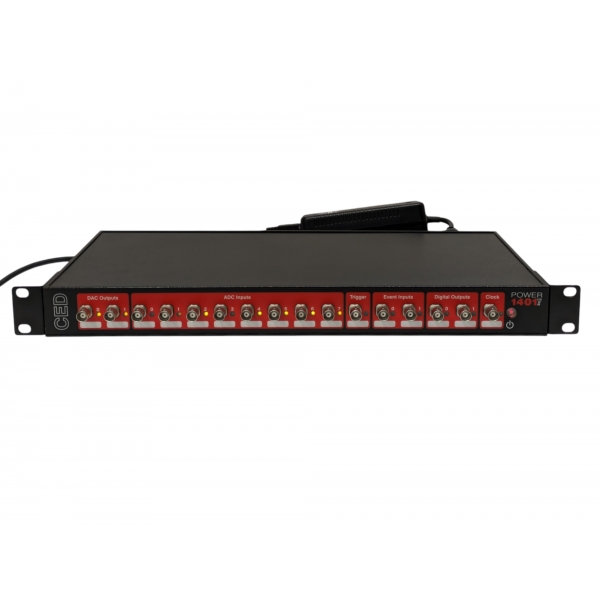

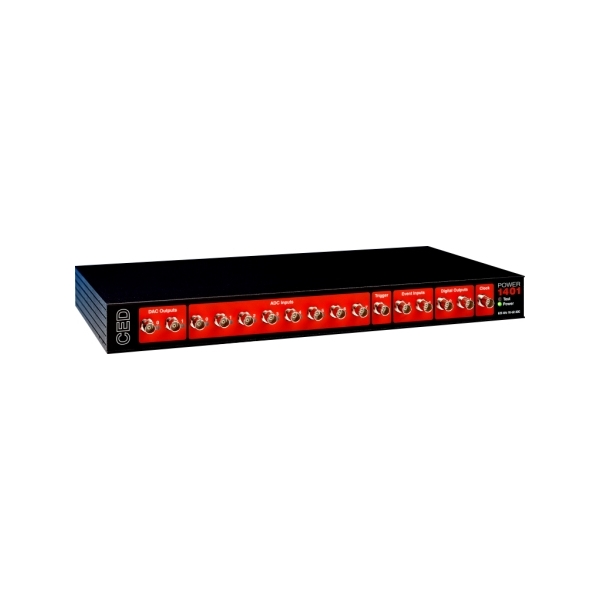

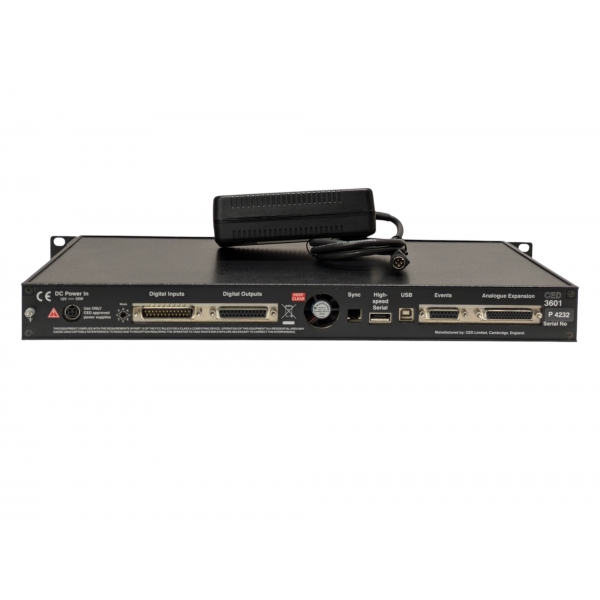

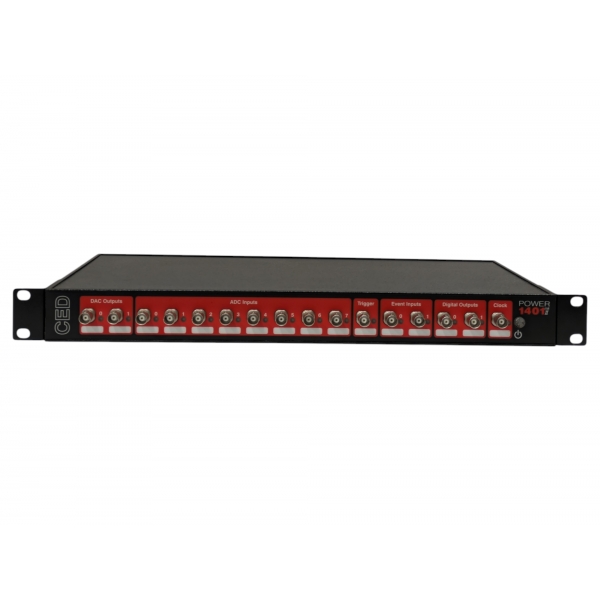

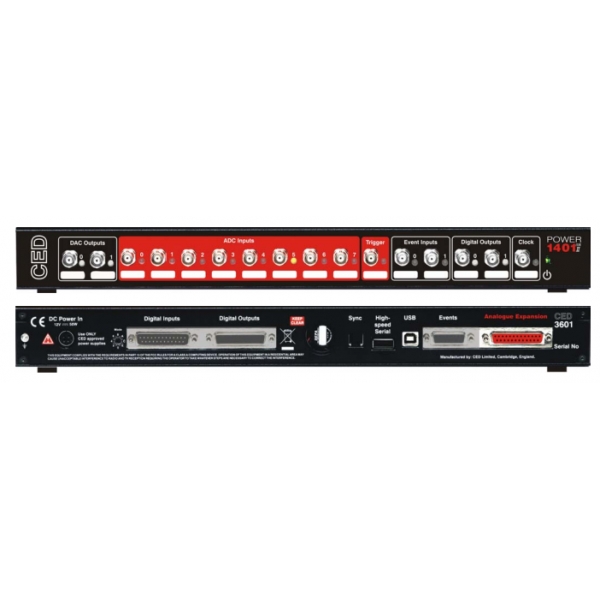

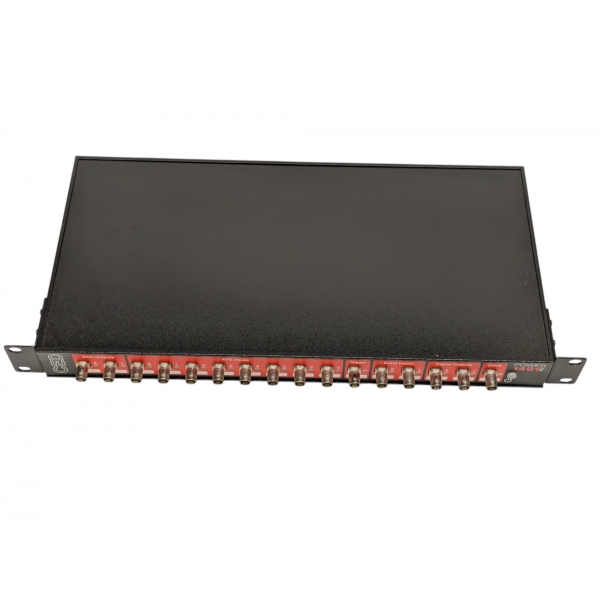

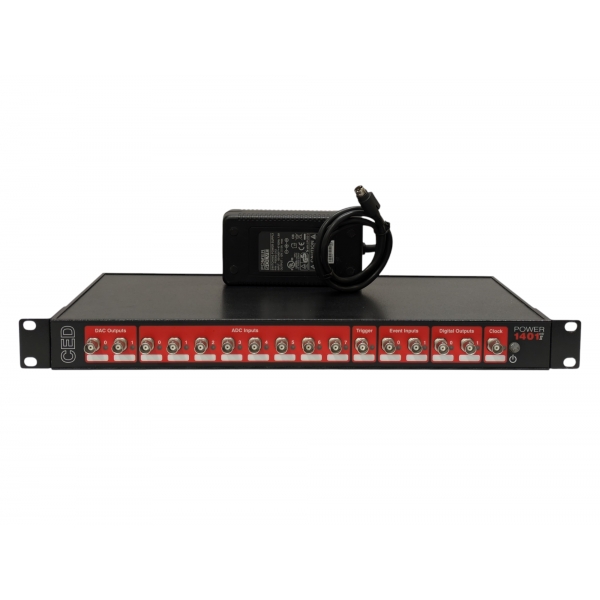

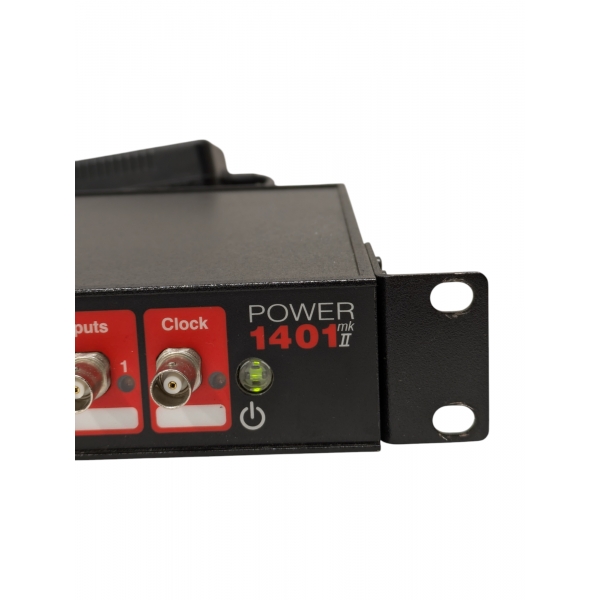

You are purchasing a used CED Power 1401 mkII. This Power 1401 mkII has been removed from a working laboratory, thoroughly tested, and is in excellent working condition. It is designed for reliable data acquisition and analysis in electrophysiology, neuroscience, and other laboratory research applications. All controls, buttons, and display elements are functioning as expected, ensuring consistent and accurate operation. The unit does show some minor signs of previous use, but this does not affect its functionality. Please review the posted photos for a detailed view of its condition and performance. If you have any questions or need additional information, please don’t hesitate to ask.

Product Name: CED Power 1401 mkII
Condition: Used and Fully Functional

Description:

The CED Power 1401 mkII is a high-performance data acquisition interface designed for electrophysiology experiments, neuroscience research, and other lab environments requiring precise control and analysis of biological signals. This device offers reliable performance with accurate timing and signal acquisition, making it an essential tool for researches.

• High-Resolution Data Acquisition: The CED Power 1401 mkII provides high-quality data acquisition, supporting a wide range of signal types and experiments.
• Signal Conditioning: It offers a built-in signal conditioning interface to allow smooth integration with various laboratory equipment.
• Digital Output/Triggering: Provides digital outputs for triggering other devices, such as stimulators or oscilloscopes, and for synchronous data collection.
• Advanced Timing: Offers precise timing control for time-dependent experiments, with high-resolution timing capabilities.
• Compatible with Spike2 Software: Works seamlessly with Spike2 software for data collection, analysis, and visualization.
• Multiple Channel Support: Supports the simultaneous acquisition of multiple data channels, making it ideal for complex experimental setups.
• Enhanced Processing Power: The Power 1401 mkII processor is 3 times faster than previous models, with a 32x larger base memory, enabling more complex on-line analysis. This includes faster spike shape recognition and the ability to increase both the number of channels and templates for shape matching.
• Memory Expansion: The Power 1401 mkII comes with 32 MB of memory, expandable to 256 MB, which stores larger output waveforms and allows for longer data capture sweeps.
• Waveform Capture Speed: The Power 1401 mkII runs at 625 kHz for faster data acquisition.
• Programmable Gain and Expanded Ports: The Power 1401 mkII features programmable gain for its waveform input and output. It has 16 waveform input ports. The Power 1401 also has 4 waveform outputs with 16-bit resolution, and this can be increased to 8 outputs with an optional expansion unit.
• Expandable Systems: The number of ports can be expanded, and several 1401 units can be synchronized to each other or an external source for larger signal setups.

Specifications:

• Model: CED Power 1401 mkII
• Power Supply: 110-240V, 50/60Hz
• Number of Channels: Supports up to 32 channels for spike shape analysis
• Resolution: High-resolution data acquisition for precise measurements
• Waveform Capture Speed: 625 kHz
• Number of Waveform Inputs: 16 inputs with programmable gain
• Waveform Outputs: 4 waveform outputs with 16-bit resolution, expandable to 8 outputs
• Software Compatibility: Compatible with Spike2, Spike, and other CED software packages
• Memory: 32 MB, expandable to 256 MB
• Interface: USB 2.0 for fast and efficient data transfer
• Operating System: Supported on Windows and Mac platforms
• Included Power Supply: Comes with the original Type-C power adapter designed specifically for the CED Power 1401 mkII.

Condition Details:

• Used and Tested: The device has been fully tested and is confirmed to be in working order.
• Good Working Condition: The CED Power 1401 mkII operates and  providing data acquisition.
• Minor Cosmetic Wear: There are some signs of use, such as minor scratches on the exterior, but this does not affect the device’s performance.

Included Items:

• CED Power 1401 mkII Interface
• Original Type-C Power Adapter
