A-M Systems 16-channel Extracellular Amplifier (Model 3600)

A-M Systems 16 Channel Microelectrode Extracellular Amplifier Model 3600 (Used, Tested, Fully Operational)

You are purchasing a used A-M Systems 16 Channel Microelectrode Extracellular Amplifier Model 3600. This unit has been thoroughly tested and is in excellent working condition, guaranteed to be fully operational and ready for use.

✅ Condition: Used, fully operational, and in good working order.
✅ Guarantee: Fully functional and ready for use.

Description:

The A-M Systems 16 Channel Microelectrode Extracellular Amplifier Model 3600 is an advanced, high-quality amplifier designed to record extracellular signals from microelectrodes with precision. This essential tool is widely used in electrophysiological research, neurobiology, and biological laboratory experiments. It features 16 channels, providing ample flexibility for simultaneous recording from multiple microelectrodes, making it ideal for multi-electrode arrays and neural circuit studies.

The Model 3600 supports a wide range of experimental setups with its high gain, low-noise amplification, and versatile control features. It includes built-in calibration signals, filters, and supports computer control via USB with a supplied Windows-compatible software program. The unit is also equipped with TTL control, offering flexibility in experimental protocols. Additionally, it can be integrated into rackmount setups for easier lab organization.

Key Features:

• 16 Independent Channels: Allows simultaneous monitoring from up to 16 electrodes, providing maximum flexibility for complex neural recording experiments.
• High-Quality Amplification: Low-noise, high-gain amplifiers that can detect microvolt-level signals with exceptional accuracy.
• Gain Settings: 11 adjustable gain settings from x2 to x20,000, enabling optimization of signal strength for a wide range of experiments.
• Filter Options:
• Low-Pass Filter: Selectable cut-off frequencies from 100 Hz to 20.0 kHz.
• High-Pass Filter: Selectable cut-off frequencies from 0.3 Hz to 500 Hz.
• Notch Filter: 50 Hz or 60 Hz center frequency for power line rejection.
• External Control: Fully controllable via a touchscreen LCD display on the front panel or via USB link to a computer using the provided software for Windows OS. MATLAB® and LabVIEW SDKs and drivers are available for programmatic control.
• External TTL Pulses: Allows external TTL pulses to control each channel's operational mode, providing flexible experimentation options.
• Calibration: Built-in calibration signal for ensuring accurate readings and signal consistency.
• Monitor A & B : Separate
• Rackmount Enclosure: The unit fits a 3U rackmount enclosure , accommodates
• Compatible Headstages: Works with miniature headstages for recording only or stimulating and recording headstages, sold separately.
• PC Control: Full control via PC and integration with other devices, with the ability to control multiple instruments and channels from one software interface.

Specifications:

• Noise Voltage: Typical: 2.0 µV (rms), Frequency Range: 10 Hz - 10 kHz
• Offset Voltage: Typical: ±4.0 µV/°C, Maximum: ±30.0 µV/°C
• Bias Current: Maximum: ±1 pA
• Input Impedance : 1012 Ω || 4 pF
• Inter-channel Crosstalk: -70 dB at 1 kHz
• Common Mode Rejection (CMR): 100 dB
• Rated Output: ±11 V, Output Resistance: >100 Ω
• Low Cut-Off Filter: Selectable frequencies: 0.3 Hz, 1.0 Hz, 3.0 Hz, 10.0 Hz, 30.0 Hz, 100 Hz, 300 Hz, 500 Hz (Cut-Off Rate: 40 dB/decade)
• High Cut-Off Filter: Selectable frequencies: 0.1 kHz, 0.3 kHz, 0.5 kHz, 1.0 kHz, 3.0 kHz, 5.0 kHz, 10.0 kHz, 20.0 kHz (Cut-Off Rate: 40 dB/decade)
• Notch Filter: Center Frequency: 50 Hz or 60 Hz, Rejection: >35 dB
• Gain: 11 values from x2 to x20,000
• Input Control: TTL control for mode switching and channel monitoring.
• Output Voltage: ±11 V
• Dimensions: Fits standard 3U rackmount enclosure
• Weight: Approx. 15 lbs

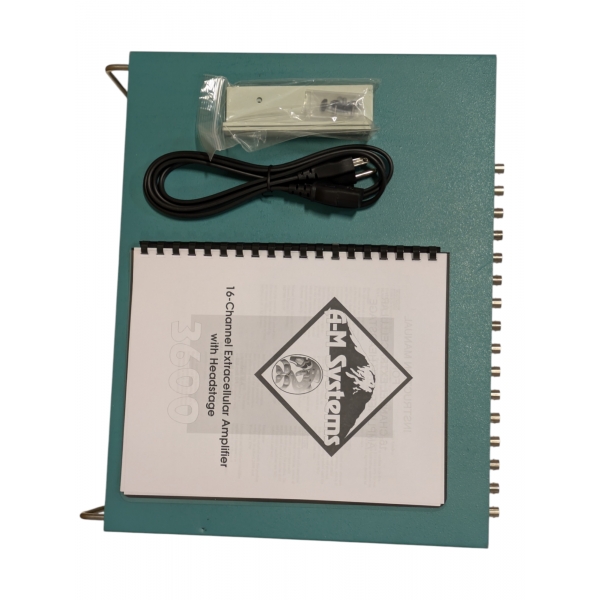

Included:

• A-M Systems 16 Channel Microelectrode Extracellular Amplifier Model 3600
• CD Software for PC control and configuration
• Rack Mounting Hardware
• Operator Manual
• Power Cable

 A-M Systems Model 3600:

• Versatile and Expandable: The Model 3600 is ideal for complex electrophysiological studies, providing 16 independent channels for simultaneous recording. It is also compatible with various headstage options, offering flexibility for both recording-only and stimulating-recording experiments.
• Advanced Filtering and Gain Settings: The 11 gain settings and extensive filtering options (low-pass, high-pass, notch) allow precise signal conditioning, ensuring that researchers can tune the system to their exact experimental requirements.
• Computer Control Integration: The unit can be controlled remotely through a USB link to a personal computer, with full functionality offered through the supplied software and MATLAB/LabVIEW integration.
• Calibration and Monitoring: The built-in calibration signal and channel monitoring features provide confidence in data accuracy, essential for long-term experiments.
• Easy Integration: With its rackmount design and compact form factor, the Model 3600 easily integrates into laboratory setups, helping researchers optimize their workspace.

The A-M Systems 16 Channel Microelectrode Extracellular Amplifier Model 3600 is an essential tool for any electrophysiology lab requiring high-quality, low-noise signal amplification from multiple electrodes. Its advanced features, flexible controls, and high performance make it ideal for a wide range of neural research applications.
