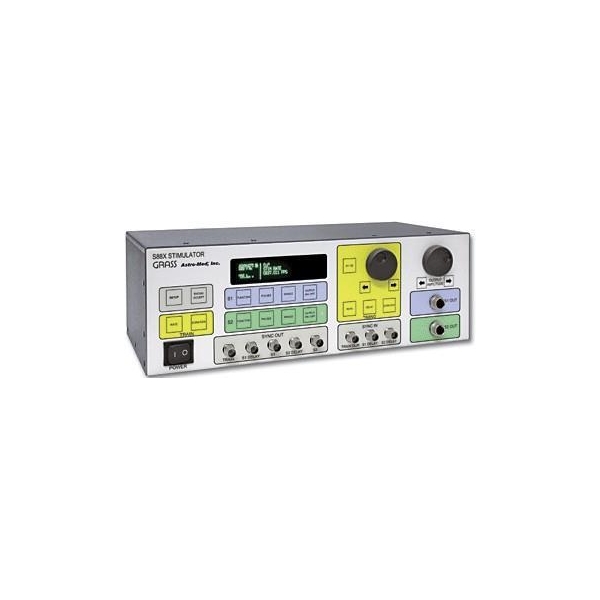

Grass Astro-Med stimulators model S88X Dual Output Square Pulse Stimulator

The S88X Stimulator applications extend from single cell to entire muscle stimulation. The two output channels can be operated independently or synchronized to produce complex paradigms. The outputs are non-isolated constant voltage monophasic, biphasic or twin pulses. Up to 9 sets of parameters can be saved for future use.

Features include：

• Computer Interface Control. Fully operational USB interface; write your own control application. Drivers, LabVIEW utility and demo C# program provided.
•  Remote control of existing parameters via PC with Windows-based host program
•  Customize and save up to nine paradigms
•  Digital panel controls – precise timing accuracy
•  Bright display simplifies setup
•  Independent or synchronous channel operation
•  Monophasic and biphasic modes
•  Dual train output
•  High current output facilitates field stimulation
•  Companion isolation units
•  Software replacement via USB cable
•  Interface with PolyVIEW16 physiological recording software

SPECIFICATIONS:

• Train Rate (S1 and S2):   1/100 sec to 99 TPS
• Train Duration:  1 msec to 99 sec
• Rate (S1 and S2): 1/100 sec to 1000 PPS
• Pulse Delay (S1 and S2):   10 μsec to 99 sec
• Pulse Duration (S1 and S2):  10 μsec to 99 sec
• Synchronous Outputs (TTL):   S1, S2, S1 Delay, S2 Delay, Train;
• Front panel BNC connectors, 50 ohm, 10 μsec pulses, can source/sink 20 mA peak
• Synchronous Inputs (TTL):   Train Duration, S1 Delay, S2 Delay;
• Front panel BNC connectors, 4.75 kohm pullup to 5 volts
• Stimulus Output:   250 mV to 24 VDC (monophasic) / ±250 mV to ±12 VDC (biphasic)
• Peak Output Current:   1 A
• Output Protection:  Yes, current limited
• Output Impedance:   <2 ohms
• Maximum Power Out:   24 W peak
• AC Power:   115/230 volts, 50/60 Hz, 100 watts maximum
• Physical Size:   19" W x 5.25" H x 12.5" D (48.3 cm x 13.4 cm x 31.8 cm)
• Weight :  10 lbs. (4.5 kg)
• Regulatory:  Safety EN 61010-1:2001, UL 61010A-1, CSA C22.2 No. 1010.1-92 EMC: FCC Part 15, Subpart B, Class B, EN 61326:1998 Class B

Stimulator includes Manual, Software CD, Power cord and (2) CAB-21891 Output Cables for applications requiring direct output without a stimulus isolation unit
For Research Only - Not Intended For Use on Humans.
